ALL SERIES
DDPro168
DDPro168
{pboot:if(DDP168A(Without Glass)!='')}

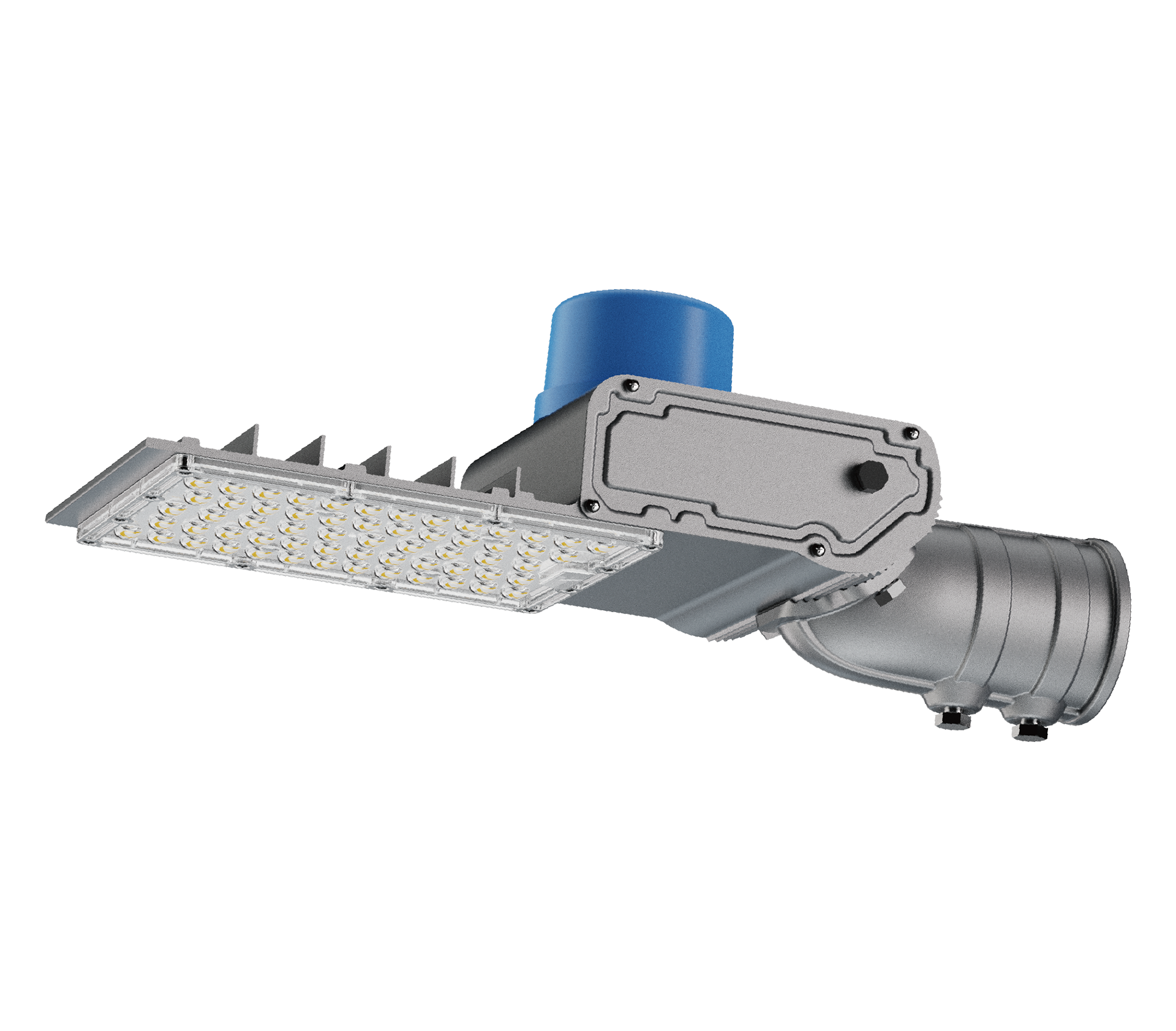

DDP168A(Without Glass)
{/pboot:if}
{pboot:if(DDP168B(With Glass)!='')}

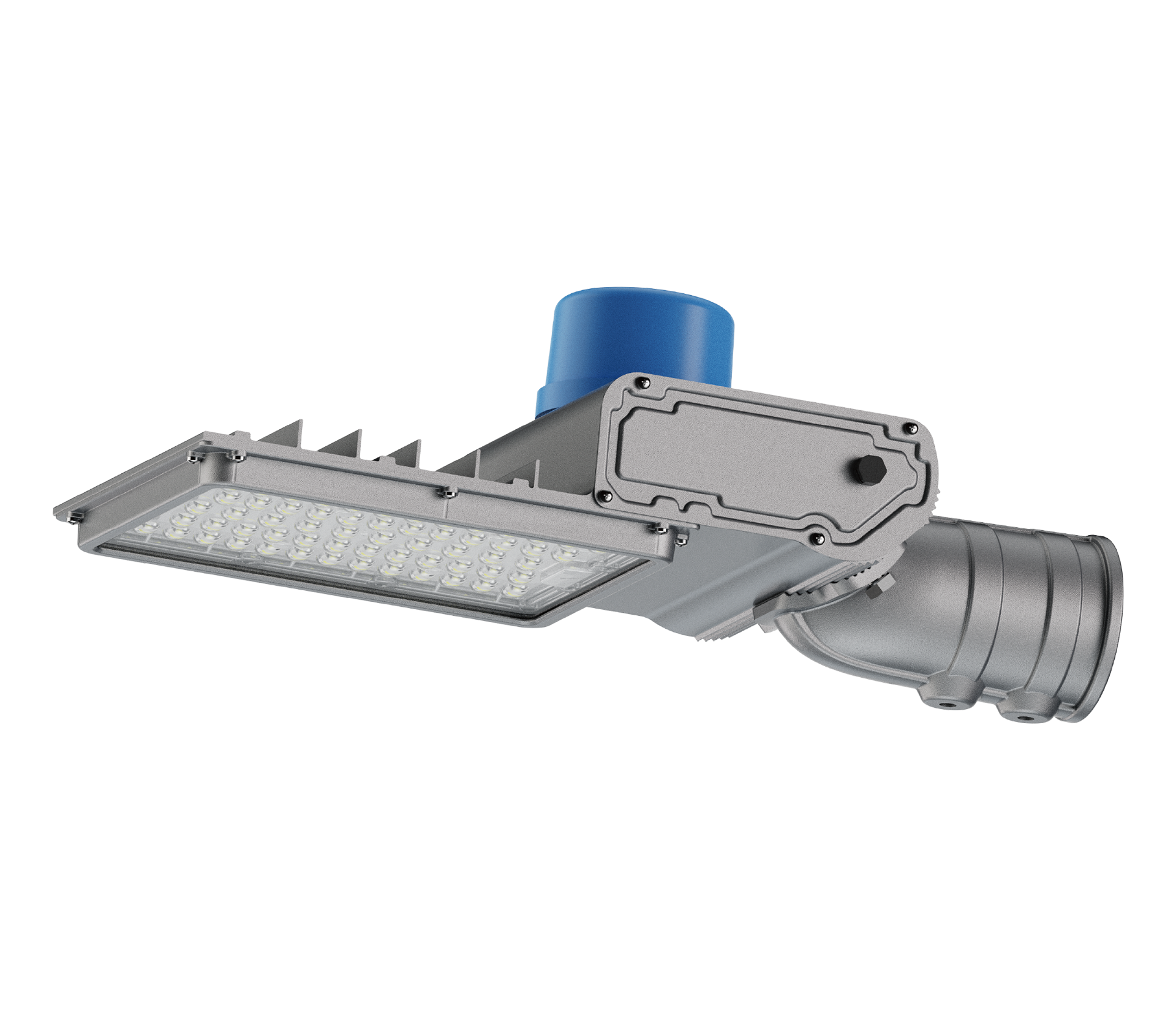

DDP168B(With Glass)
{/pboot:if}

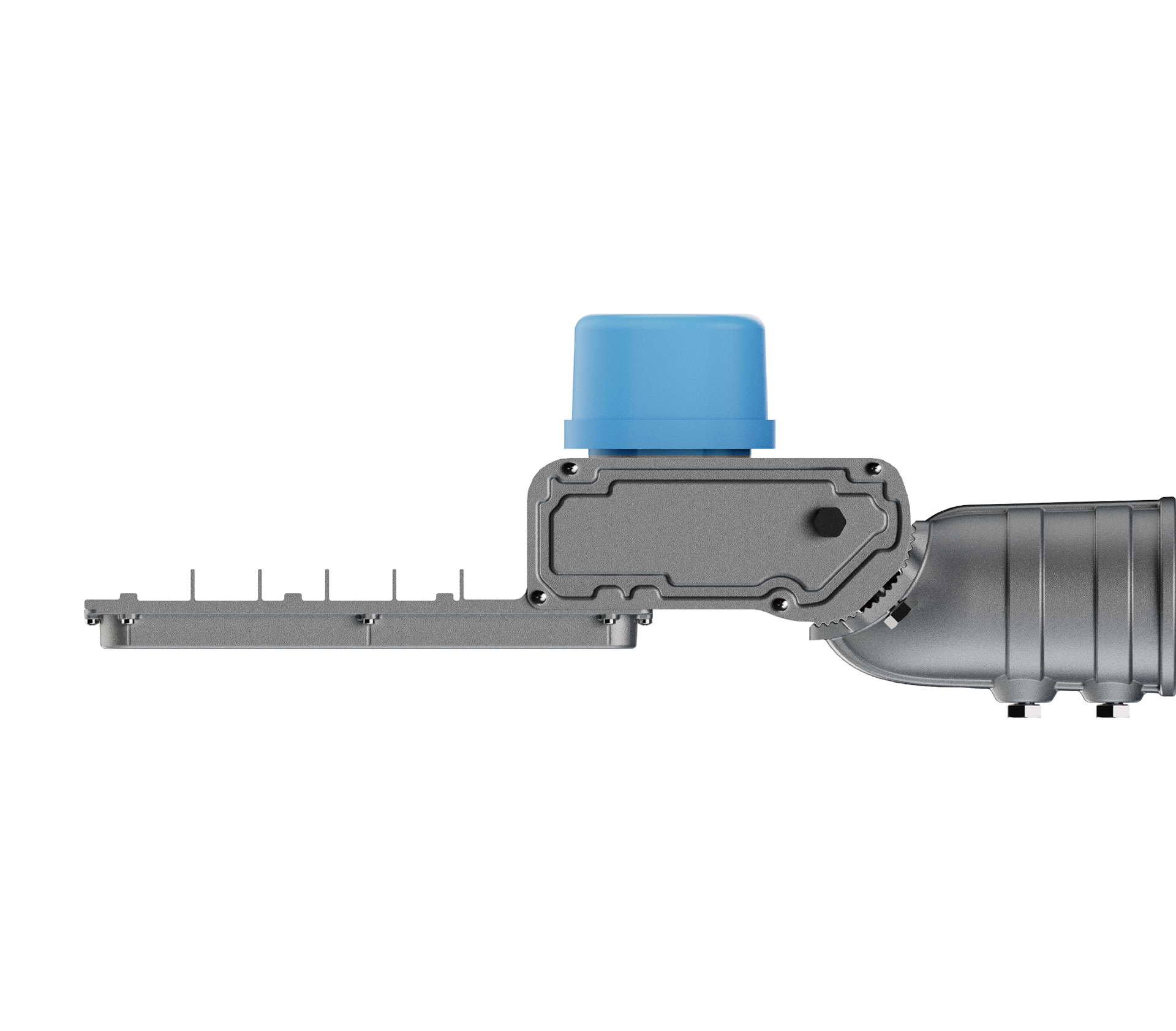

Horizontal entry

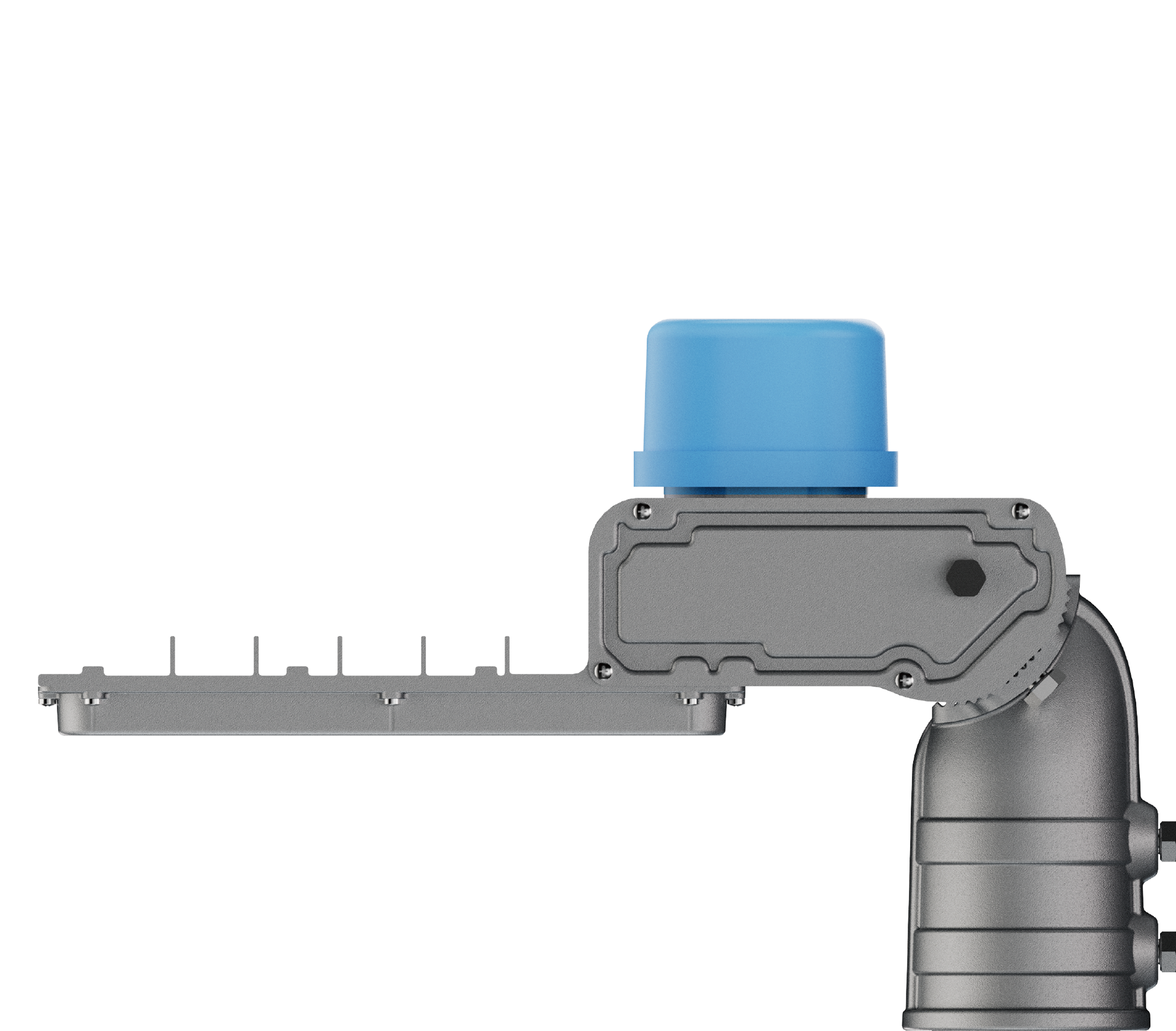

Vertical entry
Professional lighting solutions for various outdoor applicaitons with 70% energy saving, short ROI period;
Up to 100, 000hrs @ L70, low maintenance cost;
Simple designs with high quality aluminum profile could minimize the wind resistance to improve its reliability and enhances thermal management performance to achieve a longer life span;
NEMA and ZHAGA based control systems, ready for smart city solutions and compatible with solar system to provide green and sustainable lighting;
Worldclass,approbated quality components(LEDs/Driver/etc.);
Support horizontal and vertical mounted,suitable for different light poles and applications;
5 years warranty.
| Model No. | DDP168A (Without Glass) | DDP168B (With Glass) | ||
|---|---|---|---|---|
| Typical Power | 20/30/40w | 50/60/75/80w | 20/30/40w | 50/60/75/80w |
| Typical Efficacy(Lm/W) | 165±5 | 160±5 | 156±5 | 152±5 |
| Input Voltage | AC 100/120-240V/277V 50/60Hz | |||
| LED Driver | INVENTRONICS/MOSO/PHILIPS(available on request) | |||
| Power Factor | ≥0.95 | |||
| THD | <10% | |||
| Surge Protection | 10KV | |||
| LED Components | SMD 5050 | |||
| CCT | 3000K,4000K,5000K,5700K | |||
| CRI | Ra>70 | |||
|
Standard Deviation of Color Matching |
<5 SDCM | |||
| Optics | Type l , Type ll , Type lll | |||
| IP | IP65 | |||
| IK | IK08 | |||
| Installation Size | φ60±5mm | |||
| Working Environment | -25℃~+45℃ | |||
| RH | 10%~90% | |||
| LED Lifespan | 100,000 Hours | |||
