ALL SERIES
DDPro173
DDPro173
Front View
Back view
Side view
Horizontal entry
Vertical entry
Adjustable Installation Angle

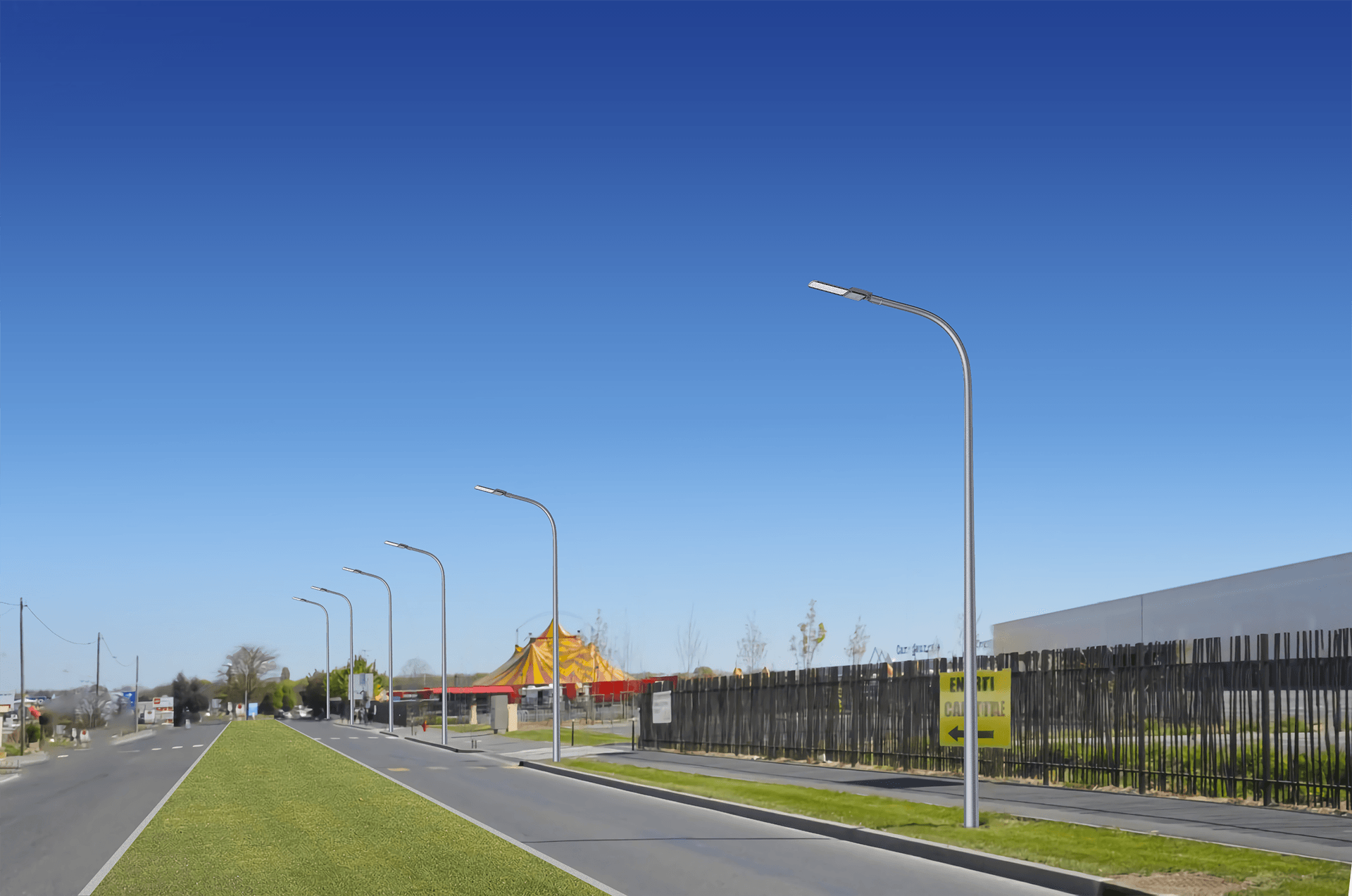

Suitable for multiple outdoor lighting applications,such as roads,squares,commercial area lightings,etc,
Working temperature: -30℃～+50°C,
High quality Led chips brings less lighting decay,long-lasting and durable performance,
Multiple installation angle: Horizontal & Vertical Installation,
Excellent heat dissipation performance.
| Model | DDP173S | DDP173M | DDP173L | DDP173L |
|---|---|---|---|---|
| Power | 50W | 100W | 150W | 200W |
| Input Voltage | AC100-277V | |||
| Frequency | 50Hz/60Hz | |||
| Power factor | ＞0.95 | |||
| Lighting efficacy | 160Lm/W (up to 200Lm/W) | |||
| LED lifespan | 50,000 Hours | |||
| CRI | Ra > 70 | |||
| Color temperature | 3000K, 4000K, 5000K, 5700K, 6000K, 6500K | |||
| IP | IP66 | |||
| IK | IK08 | |||
| Working temperature | -30~+50℃ | |||
| Storage temperature | 10%～90% RH / -20℃～+60℃ | |||
| Lens Material | PC | |||
| Product weight (KG) | 2KG | 2.65KG | 3.2KG | 3.7KG |
| Installation height (meter) | 6-8m | 8-10m | 10-12m | 10-12m |
