DDPro468

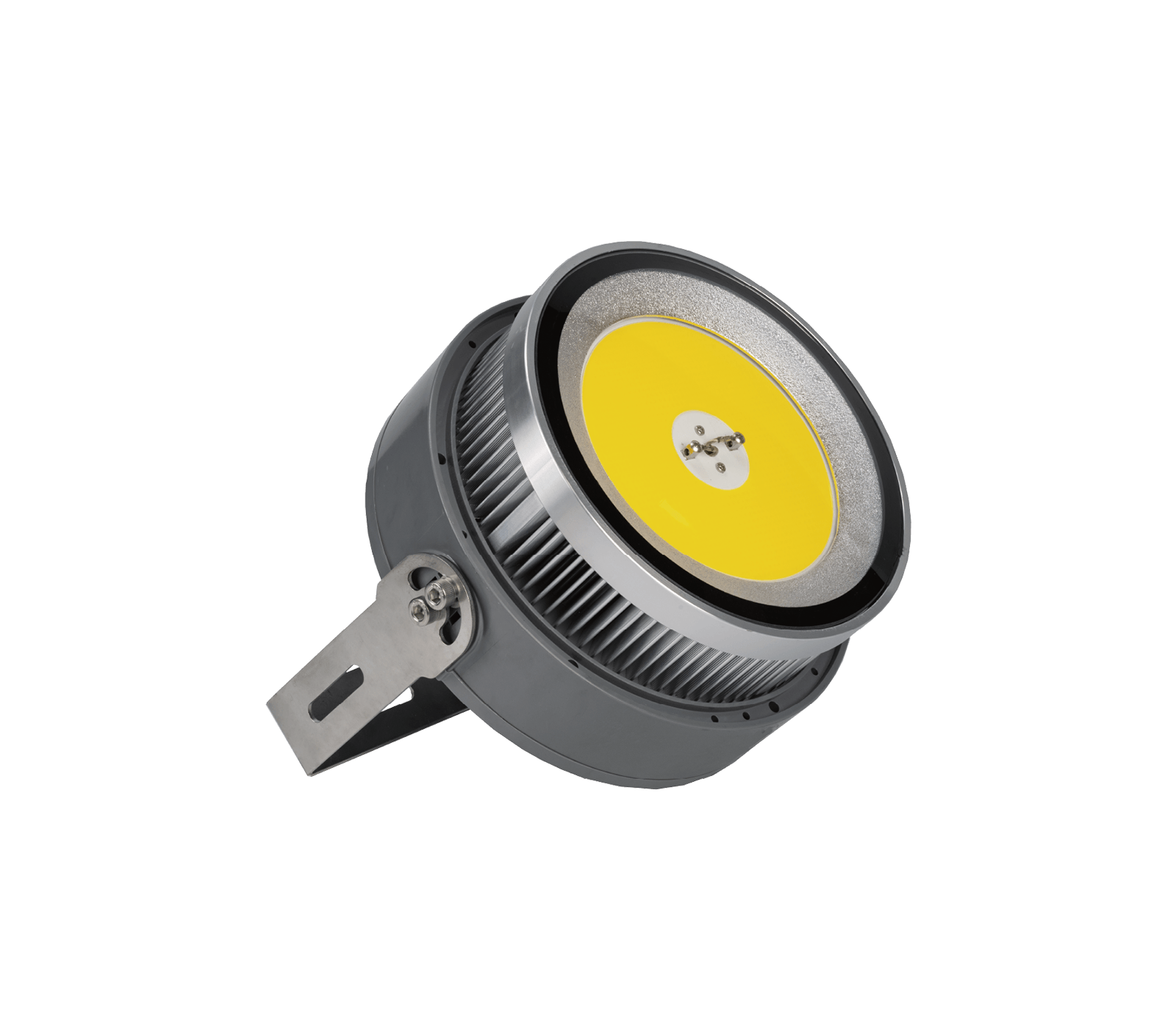

Front view

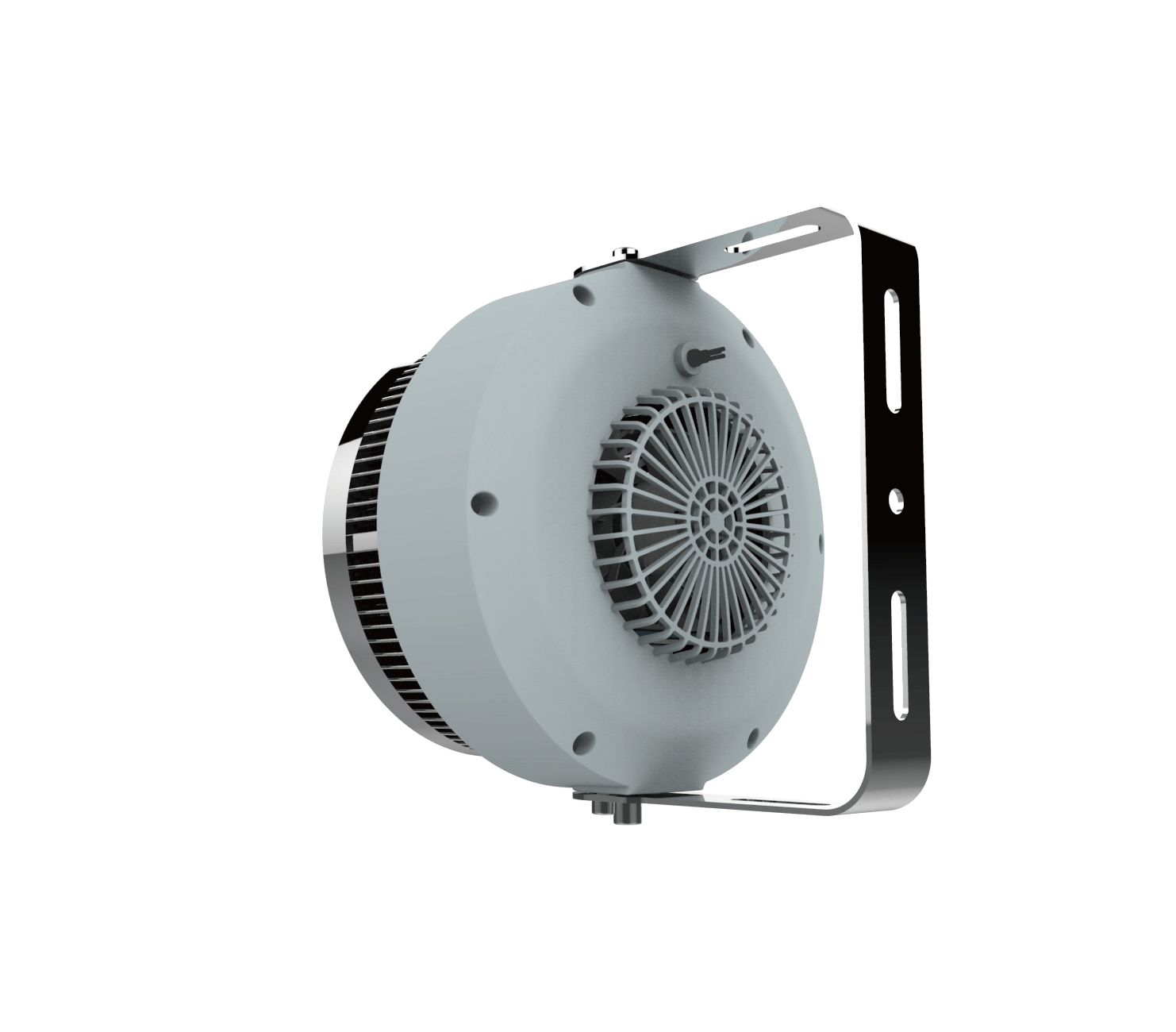

Side view

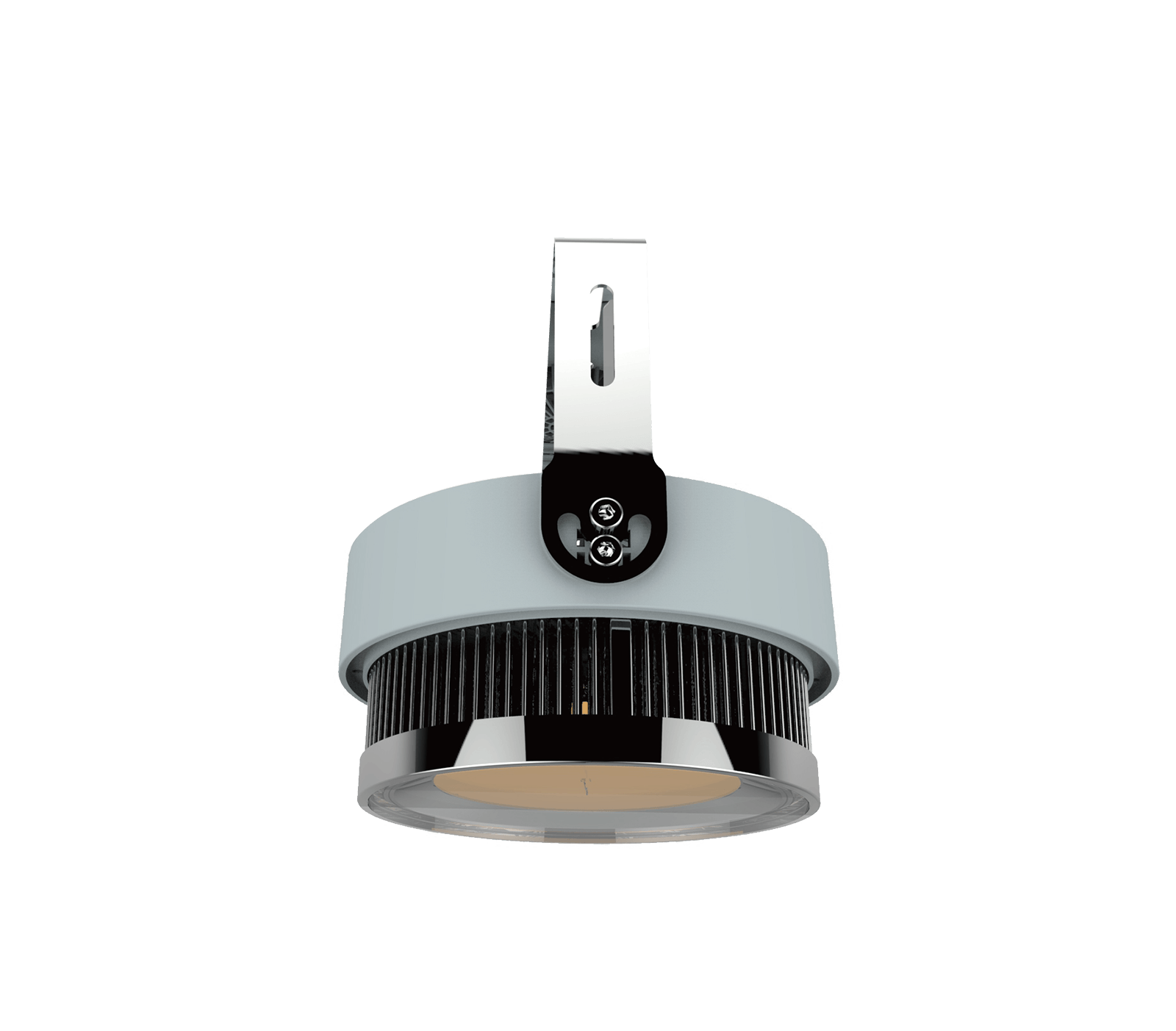

Back view

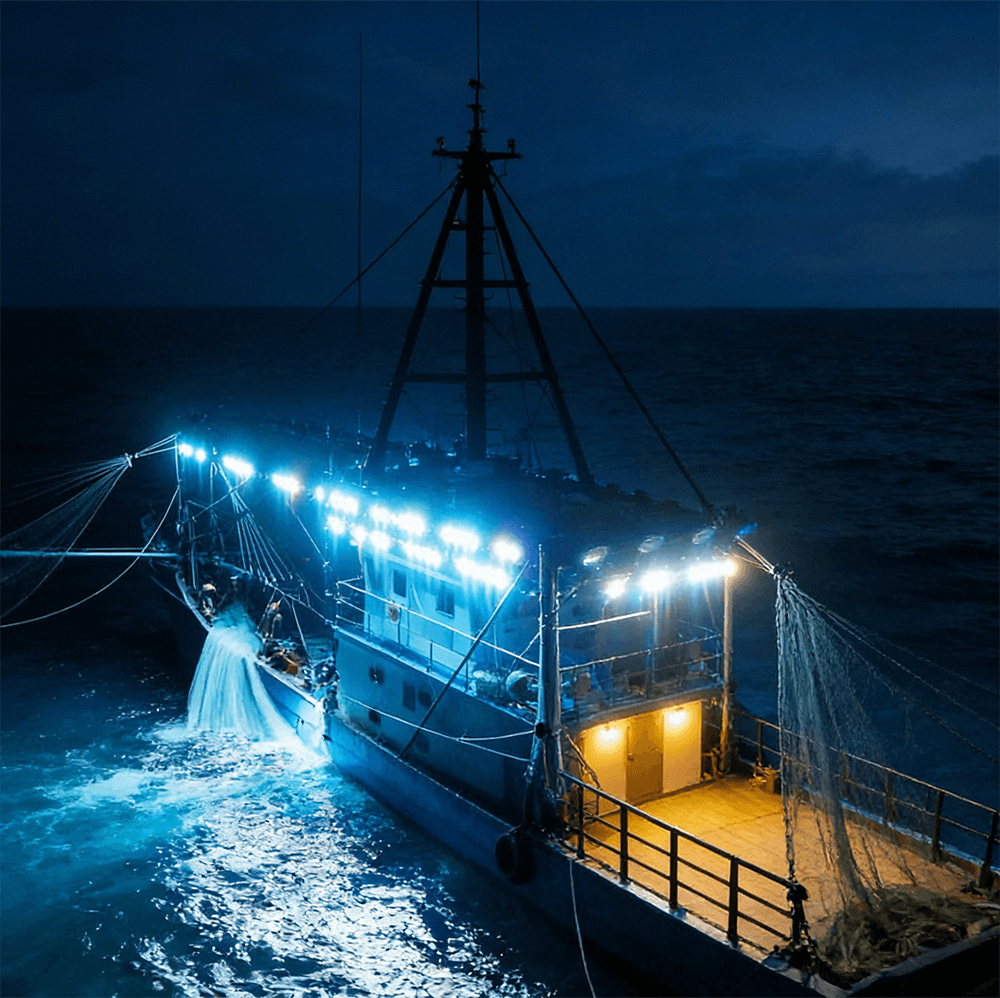

The DDP468 series fishing light is specifically designed for ocean-going fishing vessels,effectively attracting fishes and significantly increasing catch yields.
Both the fasteners and mounting brackets are made of stainless steel, offering a perfect combination of aesthetics and durability;
The lamp housing is made of extruded 6063 aluminum alloy, which is lightweight and has excellent heat dissipation performance;
The treated high tempered glass lenses provide precise lighting distribution to meet with multiple applications.
High quality Integrated COB LED chips provides high brightness and long life span;
This product covers two common powers, 500W and 1000W, to meet different applications;
Angle 120° Symmetrical wide-angle illumination;
The adjustable mounting bracket allows for angle adjustment within 90° range.
| Model No. | DDP468M | DDP468L |
|---|---|---|
| Input Voltage | AC 100-277V 50/60HZ | |
| Typical Power | 480W±5% | 950W±5% |
| Typical Efficacy(Lm/W) | 130 | 140 |
| Luminous Flux(Lm) | 62400 | 133000 |
| Power Factor | ≥0.95 | |
| CCT | 2500K-6000K | |
| LED Components | LED COB | |
| CRI | Ra>70 | |
| Beam Angle | 90° | |
| IP | IP66 | |
| IK | IK08 | |
| Working Environment | -20°C~+40°C | |
| RH | 10%~95% | |
| LED Lifespan | 30,000 Hours | |
