ALL SERIES
DDPro175
DDP175
DDP175S
DDP175M
DDP175L

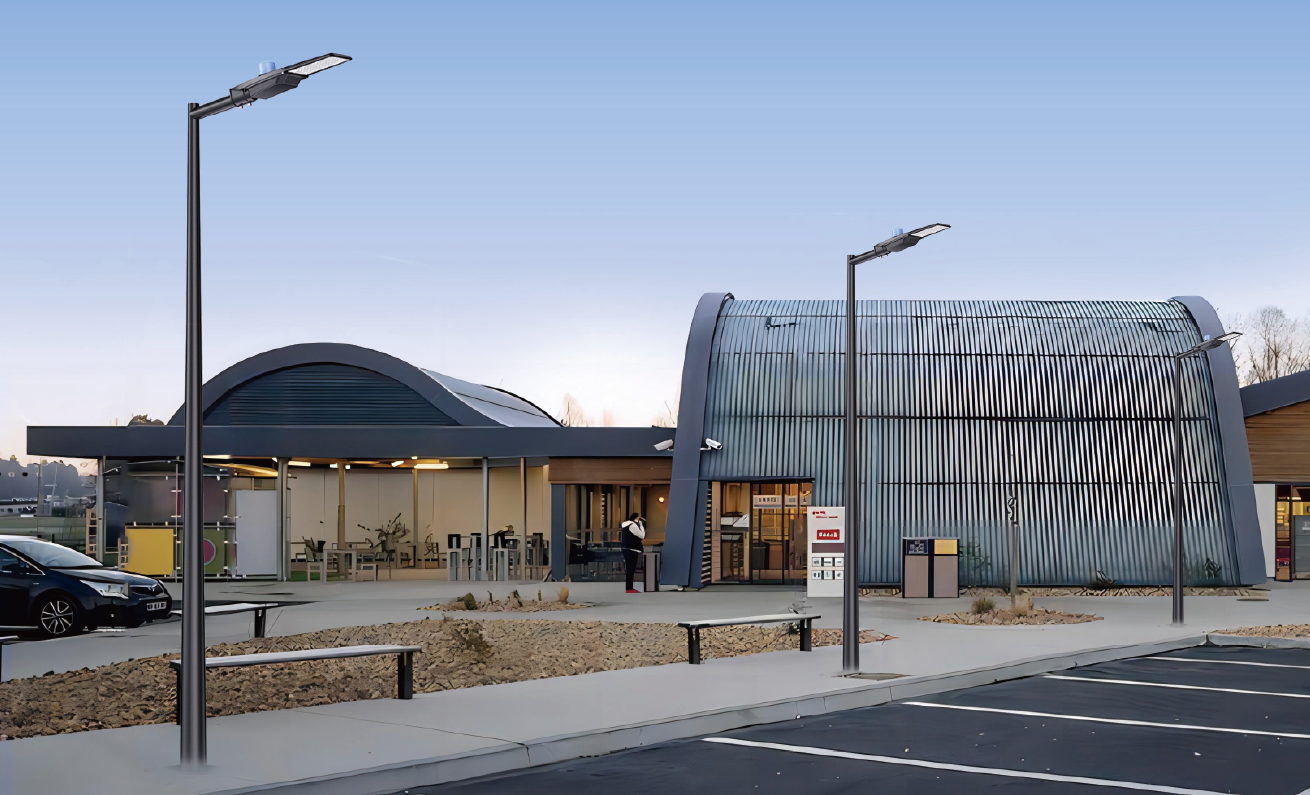

Suitable for multiple outdoor lighting applications,such as roads,squares,commercial area lightings；
Unique appearance and uniform lighting distribution;
Working temperature: -30℃～+50°C;
High protective grade : IP66 & IK08;
High quality Led chips brings less lighting decay,long-lasting and durable performance;
Excellent heat dissipation performance.
| Model No. | DDP175S | DDP175M | DDP175L |
|---|---|---|---|
| Typical Power | 50/60w | 75/80/100w | 120/150/200w |
| Typical Efficacy(Lm/W) | 170~180lm/w | ||
| Input Voltage | AC 100-277V 50/60Hz | ||
| LED Driver | DONE default, (other Led driver brand is available on request) | ||
| Power Factor | ≥0.95 | ||
| THD | <10% | ||
| Surge Protection | 10KV(Default)/15KV(available on request) | ||
| LED Components | SMD5050 x 36pcs | SMD5050 x 60pcs | SMD5050 x 120pcs |
| CCT | 3000K,4000K,5000K,5700K | ||
| CRI | Ra>70(Default)/Ra>80 | ||
| Standard Deviation of color Matching | <5 SDCM | ||
| Optics | Type l , Type ll , Type lll | ||
| IP | IP66 | ||
| IK | IK08 | ||
| Installation size | φ50/60mm | ||
| Working Environment | -30℃~+50℃ | ||
| RH | 10%~90% | ||
| Corrosion-proof Grade | WF2 | ||
| LED lifespan | 100,000 Hours | ||
