DDPro268
DDPro268

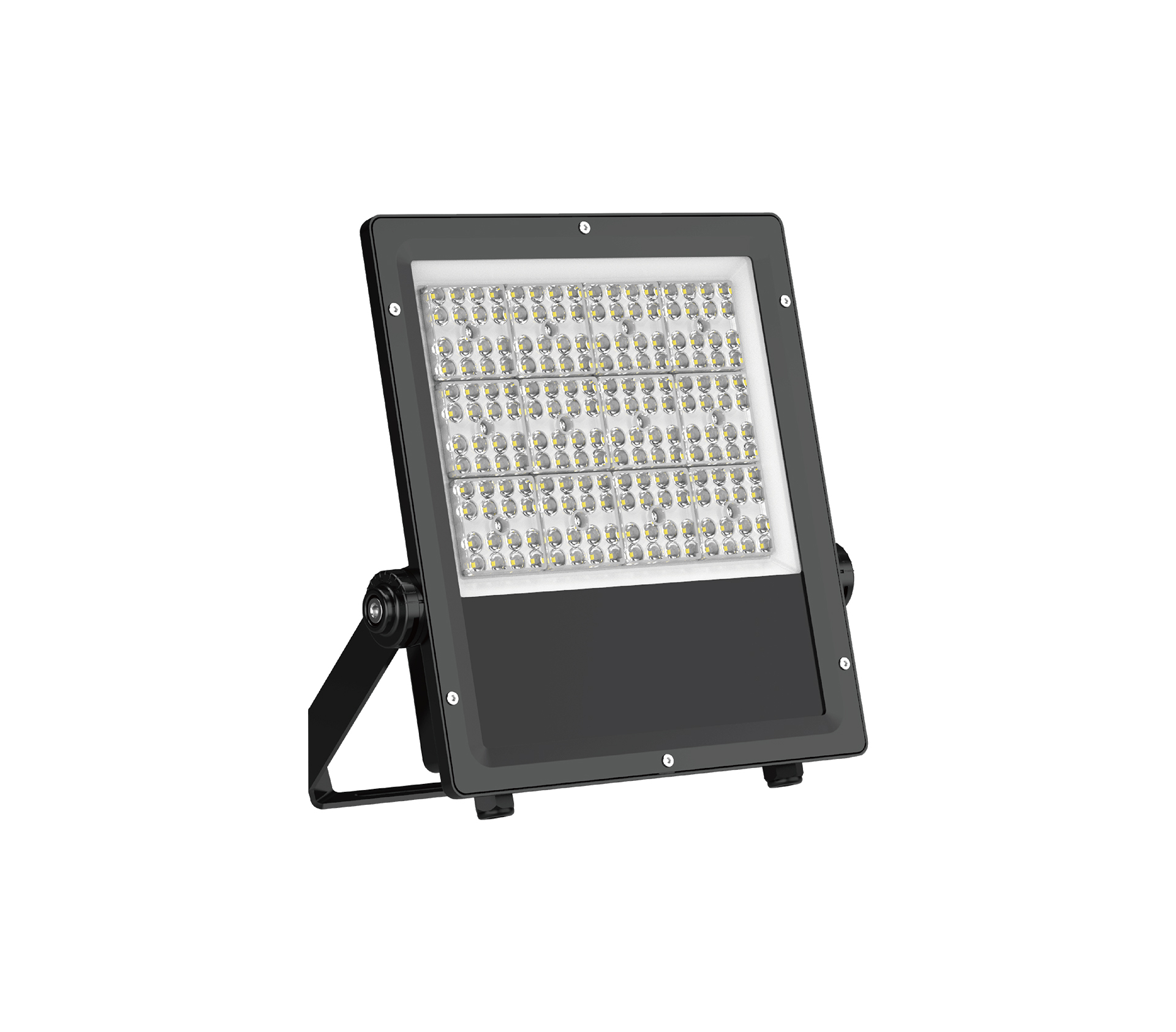

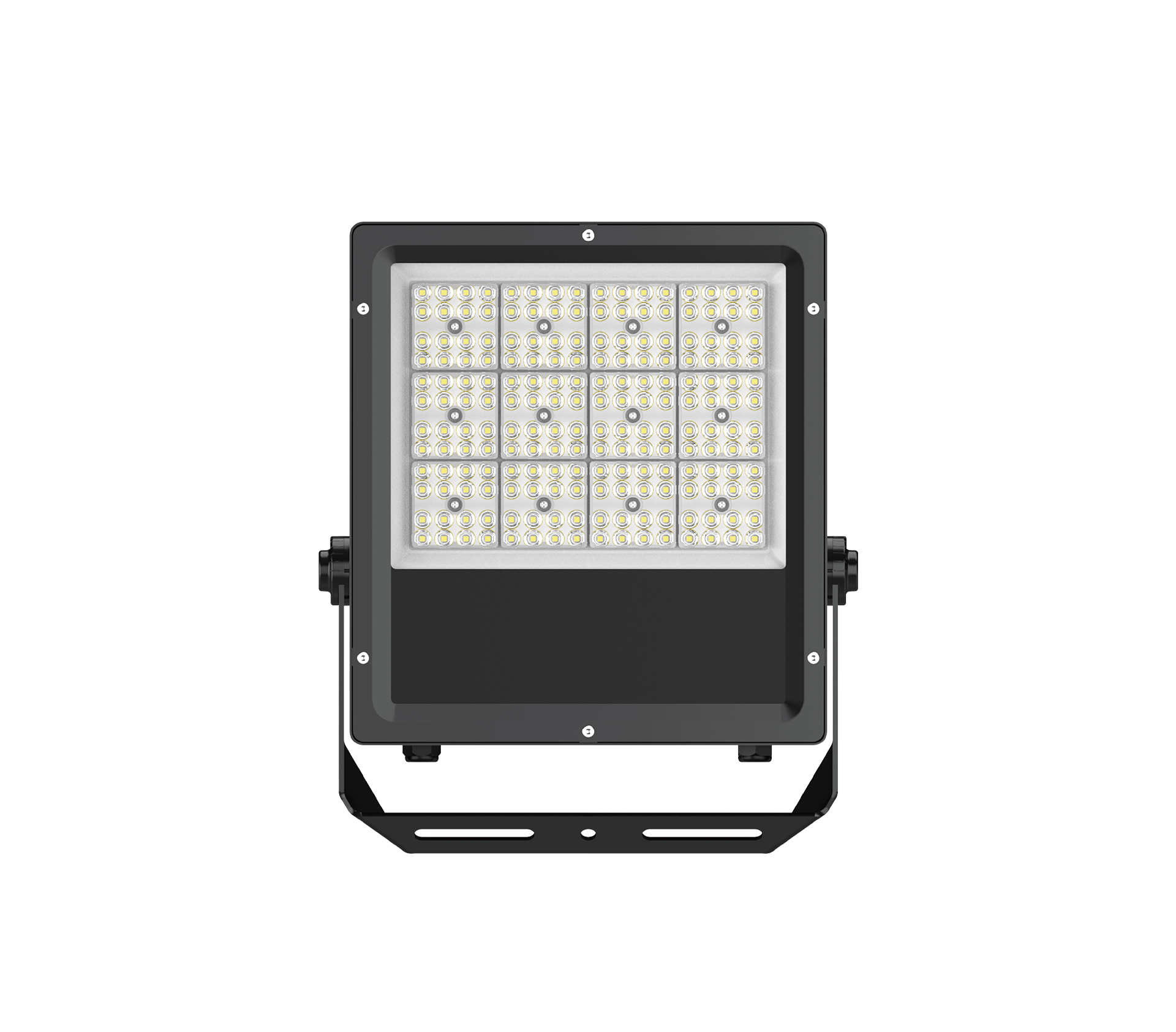

Front view

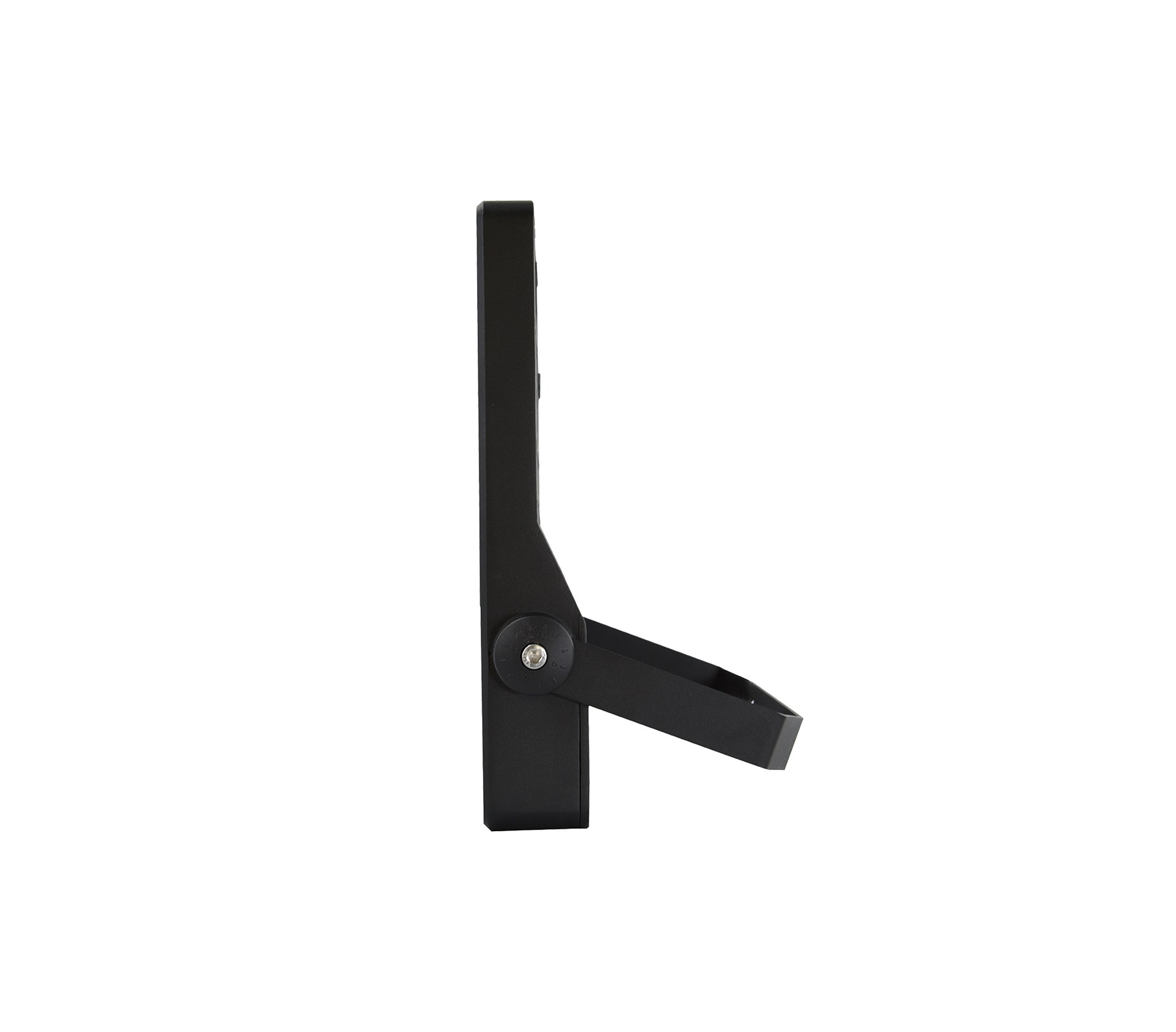

Side view
Back view
PMMA lenses with excellent transparency and optaical performace,anti-aging,uvioresistant;
Aluminum PCB with thermal conductivity chip for faster cooling;
IP66 protection level and IK08 with Temperad glass;
Adjustable bracket and superior stainless steel nuts;
Die casting aluminum lamp body,module structure with variable power;
SMD3030 LED chip ensures good reliability and consistency;
Fixture color can be customized.
| Model No. | DDP268S | DDP268M |
|---|---|---|
| Typical Power | 70/80/100/120w | 150/180/200/240w |
| Typical Efficacy(Lm/W) | 137/137/138/138 | 136/136/135/130 |
| Luminous Flux(Lm) | 9590/10960/13800/16560 | 20400/24480/27000/31200 |
| Input Voltage | AC 120-277V 50/60Hz | |
| LED Driver | INVENTRONICS/MOSO/PHILIPS(available on request) | |
| Power Factor | ≥0.95 | |
| Power Efficiency | ≥90% | |
| LED Components | SMD 3030 | |
| CCT | 2700K~5700K | |
| CRI | Ra>70 | |
| Beam Angle | 30°/60°/90° | |
| IP | IP66 | |
| IK | IK08 | |
| Working Environment | -25℃~+40℃ | |
| RH | 10%~90% | |
| LED Lifespan | 50,000 Hours | |
