ALL SERIES
DDPro274

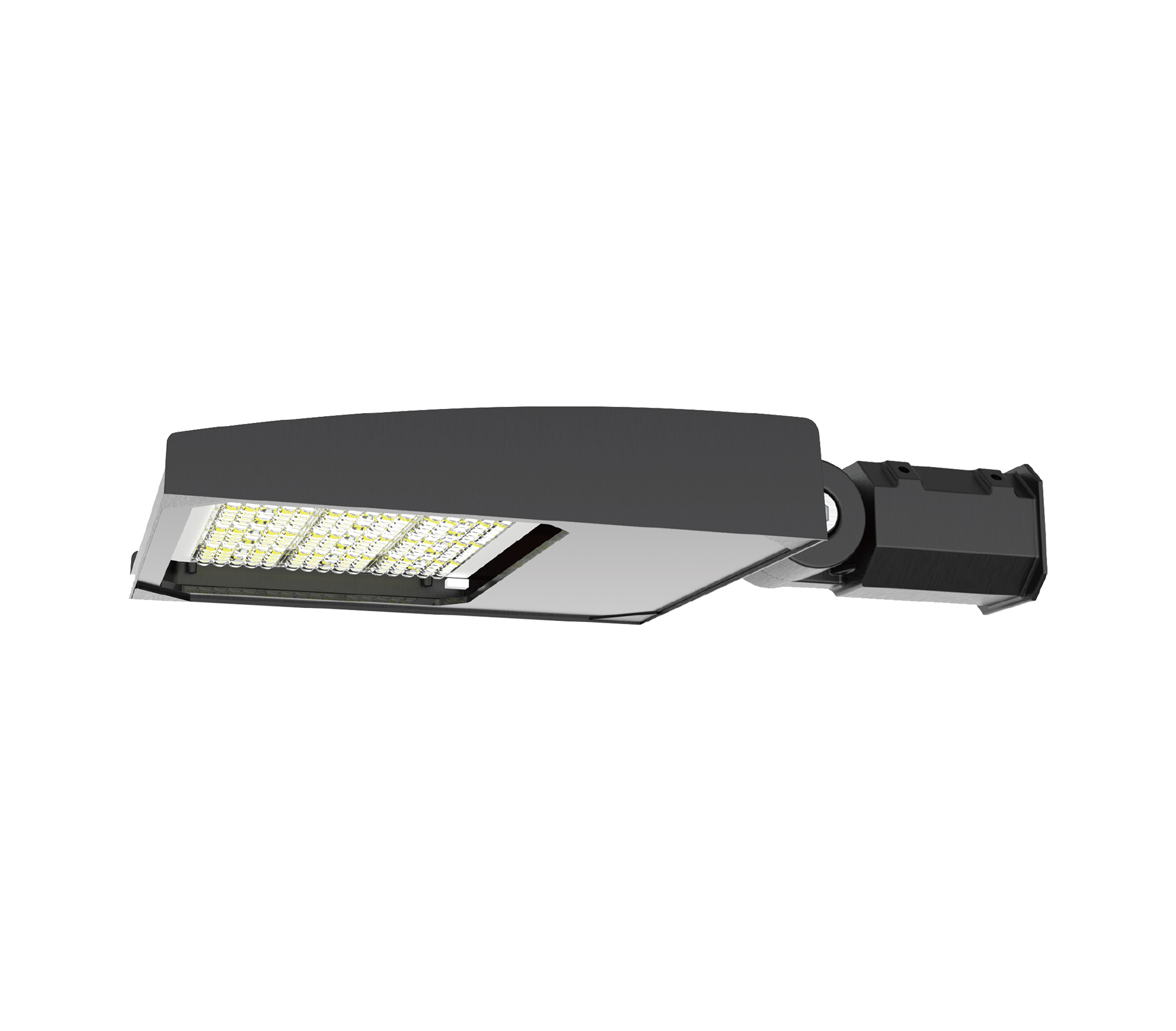

DDP274A

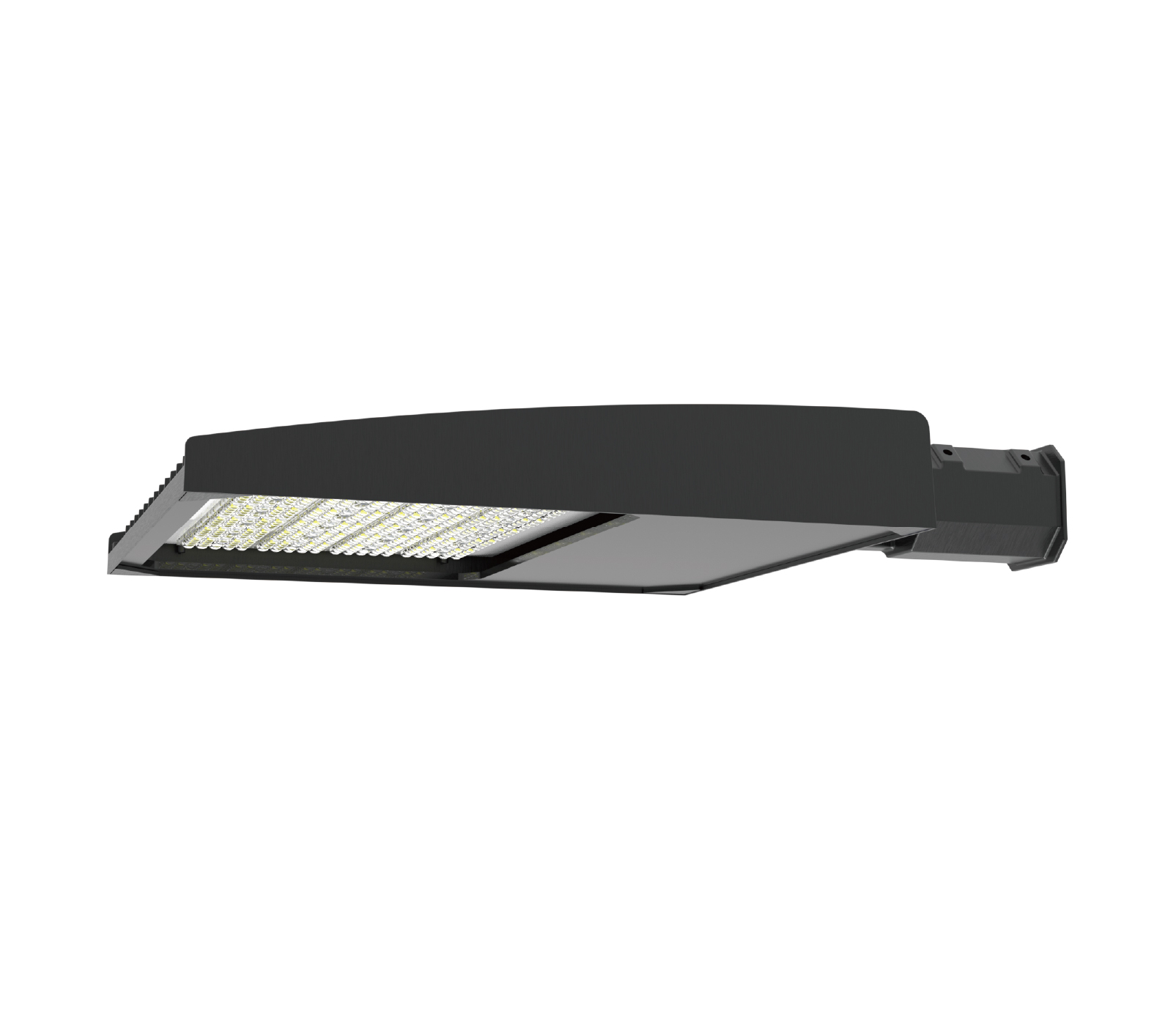

DDP274B

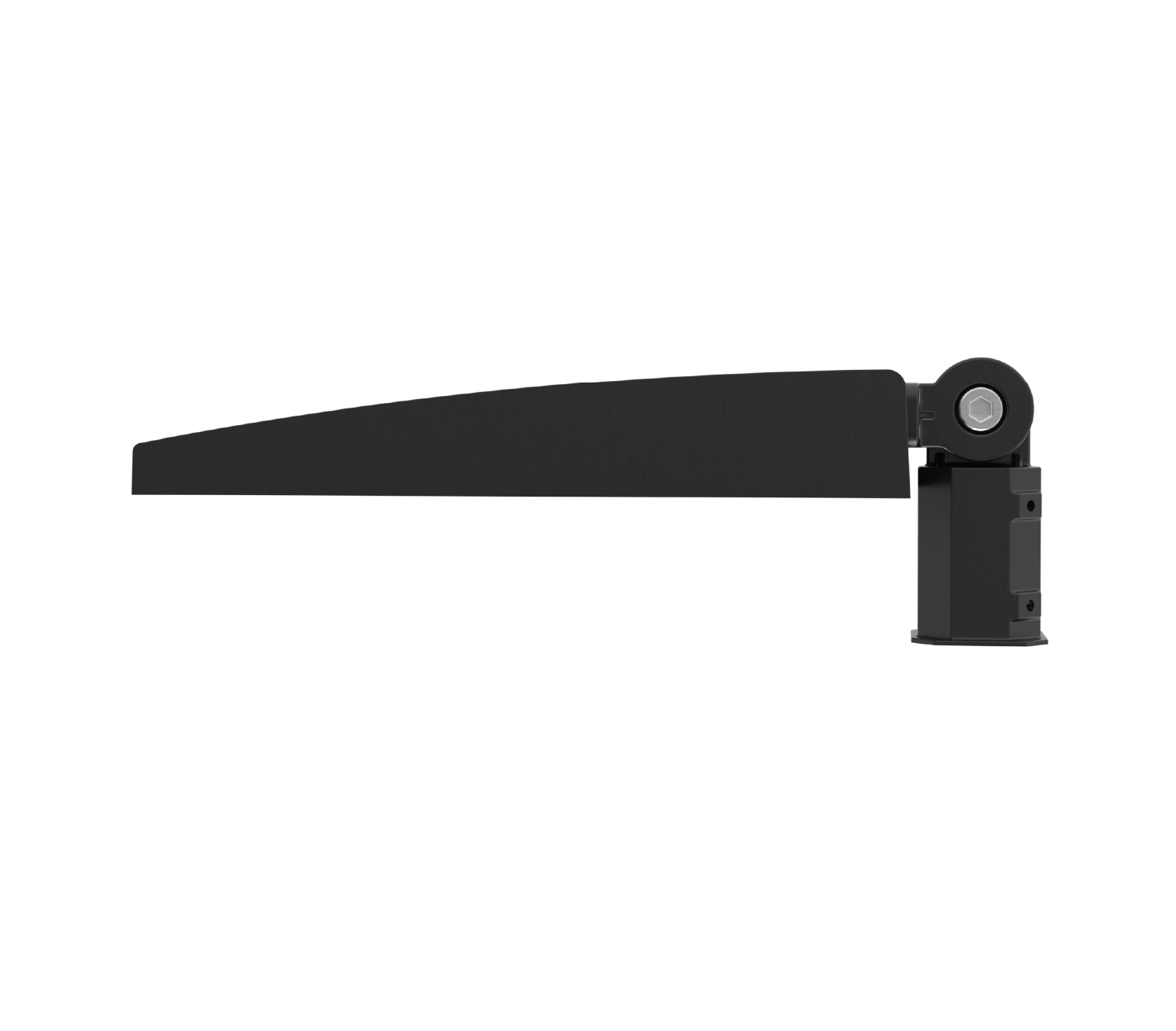

Horizontal entry

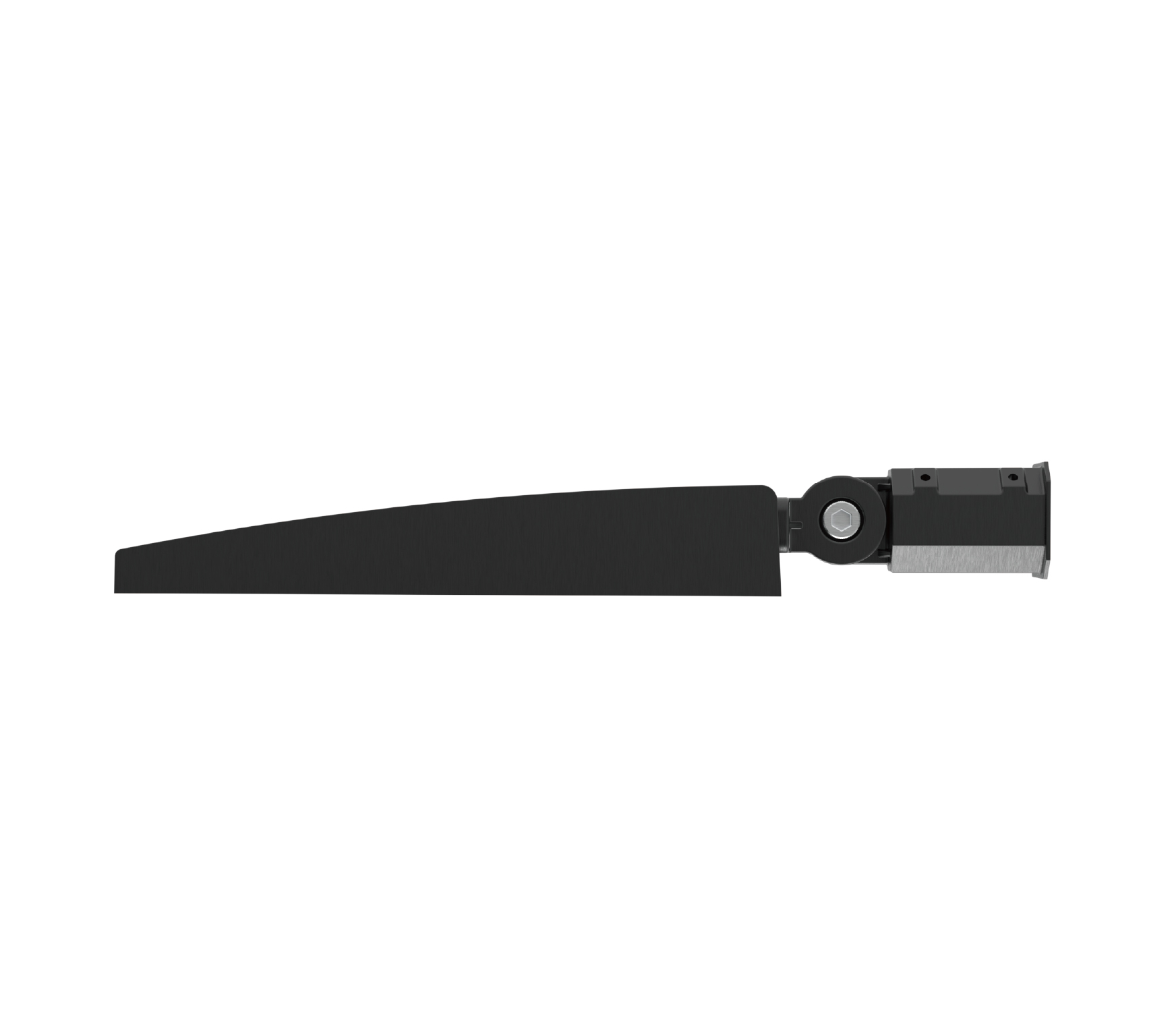

Vertical entry
PMMA lenses with excellent transparency and optaical performace,anti-aging,uvioresistant;
IP66 protection level and IK09 with tempered glass;
Adjustable bracket and superior stainless steel nuts;
Die casting aluminum lamp body,module structure with variable power;
High quality LED chip ensures good reliability and consistency;
Fixture color can be customized.
| Model No. | DDP274A | DDP274B |
|---|---|---|
| Typical Power | 150w | 300w |
| Typical Efficacy(Lm/W) | 150±5 lm/w | |
| Luminous Flux(Lm) | 22500 | 45000 |
| Input Voltage | AC 100-277V 50/60Hz | |
| LED Driver | INVENTRONICS/MOSO/PHILIPS(available on request) | |
| Power Factor | ≥0.95 | |
| Power Efficiency | ≤90% | |
| LED Components | SMD2835*288 PCS | SMD2835*576 PCS |
| CCT | 3000K~5700K | |
| CRI | Ra≥70 | |
| Beam Angle | 10° / 30° / 60° / 90° / Type II-S / Type III-S | |
| IP | IP66 | |
| IK | IK09 | |
| Working Temperture | -30℃~+50℃ | |
| RH | 10%~90% RH | |
| LED lifespan | 50,000 Hours | |
| Installation size (mm) | φ 82 ±5 | |
