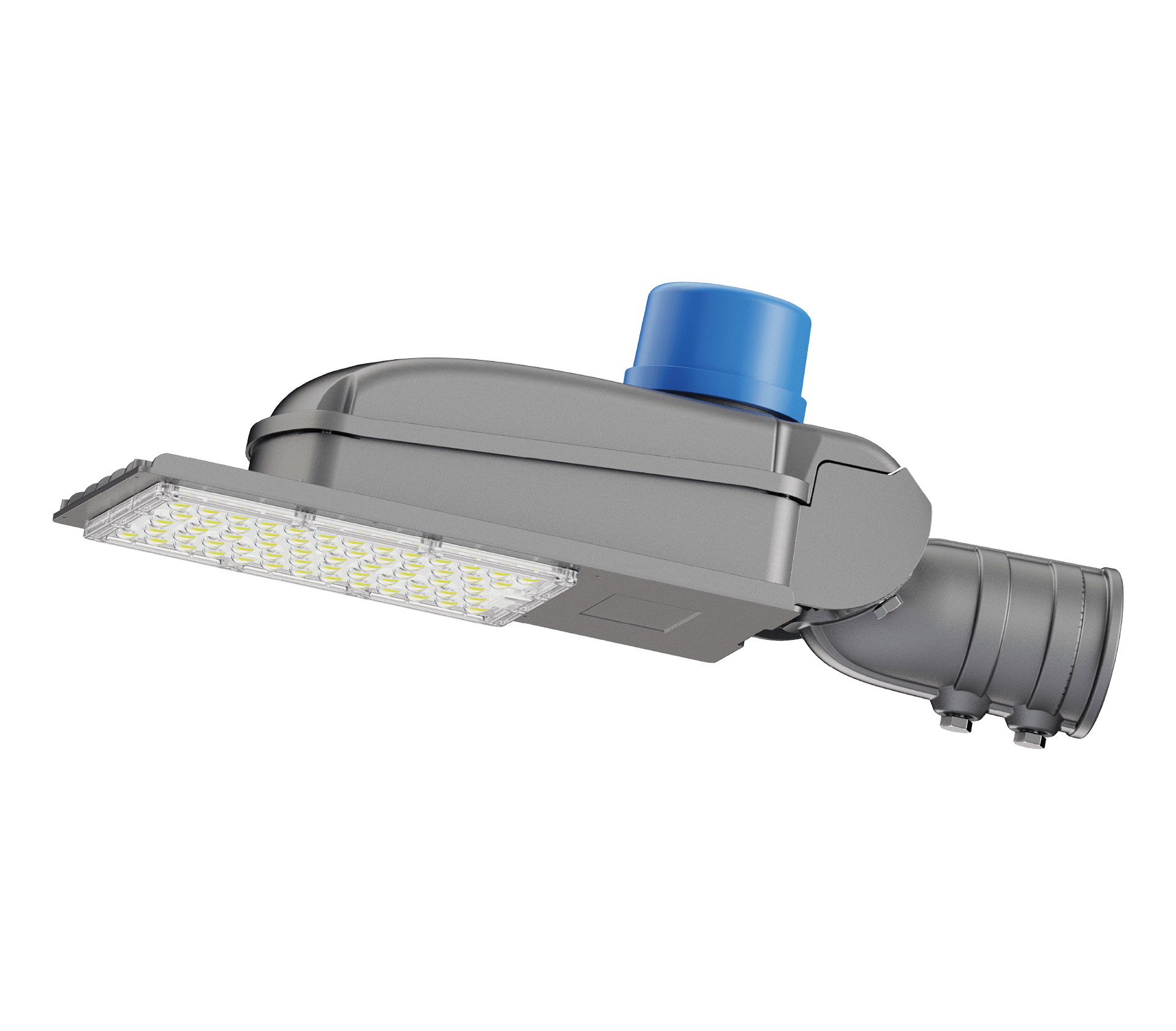

DDPro171

DDPro171

DDP171A(Without Glass)

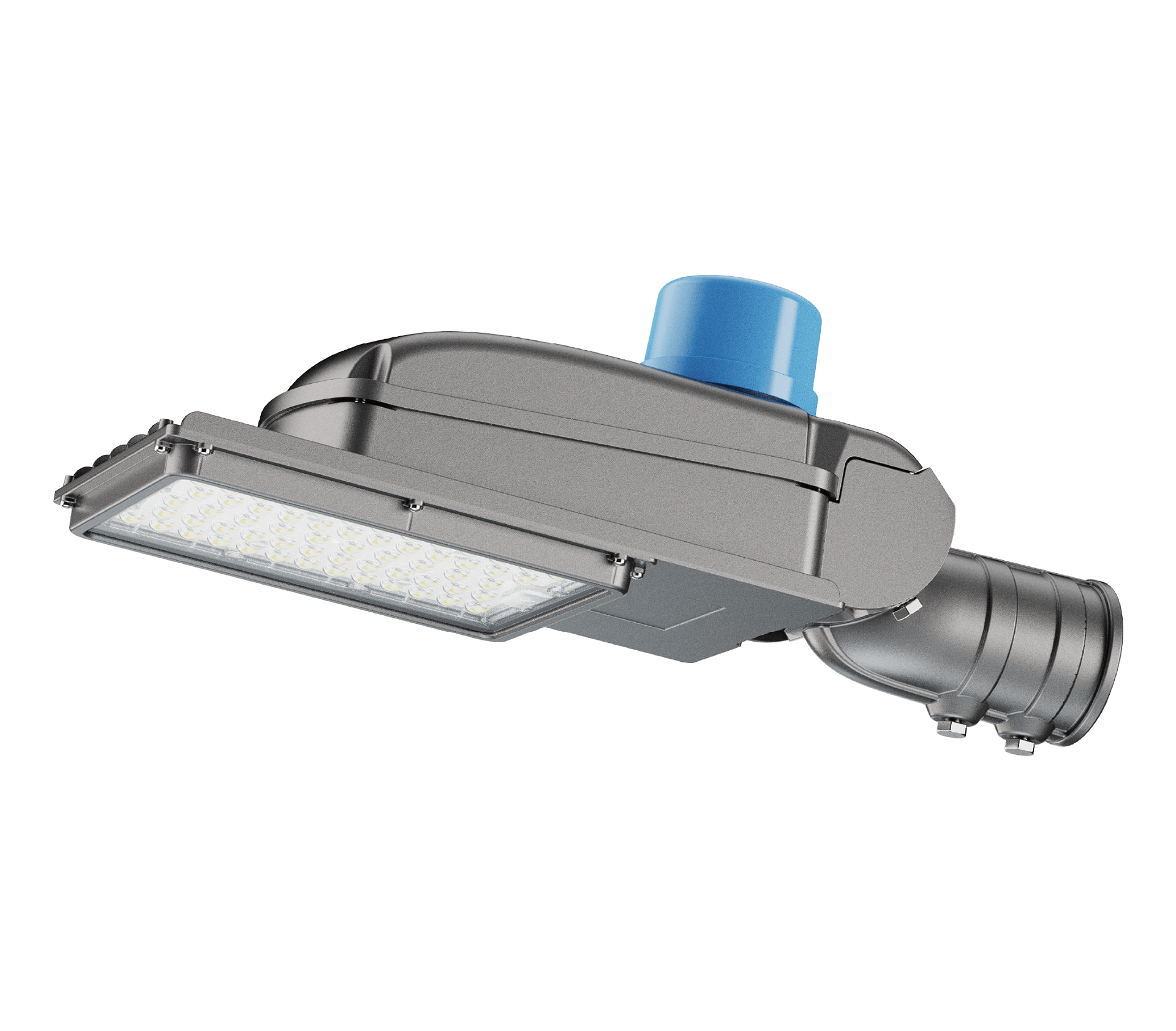

DDP171B(With Glass)

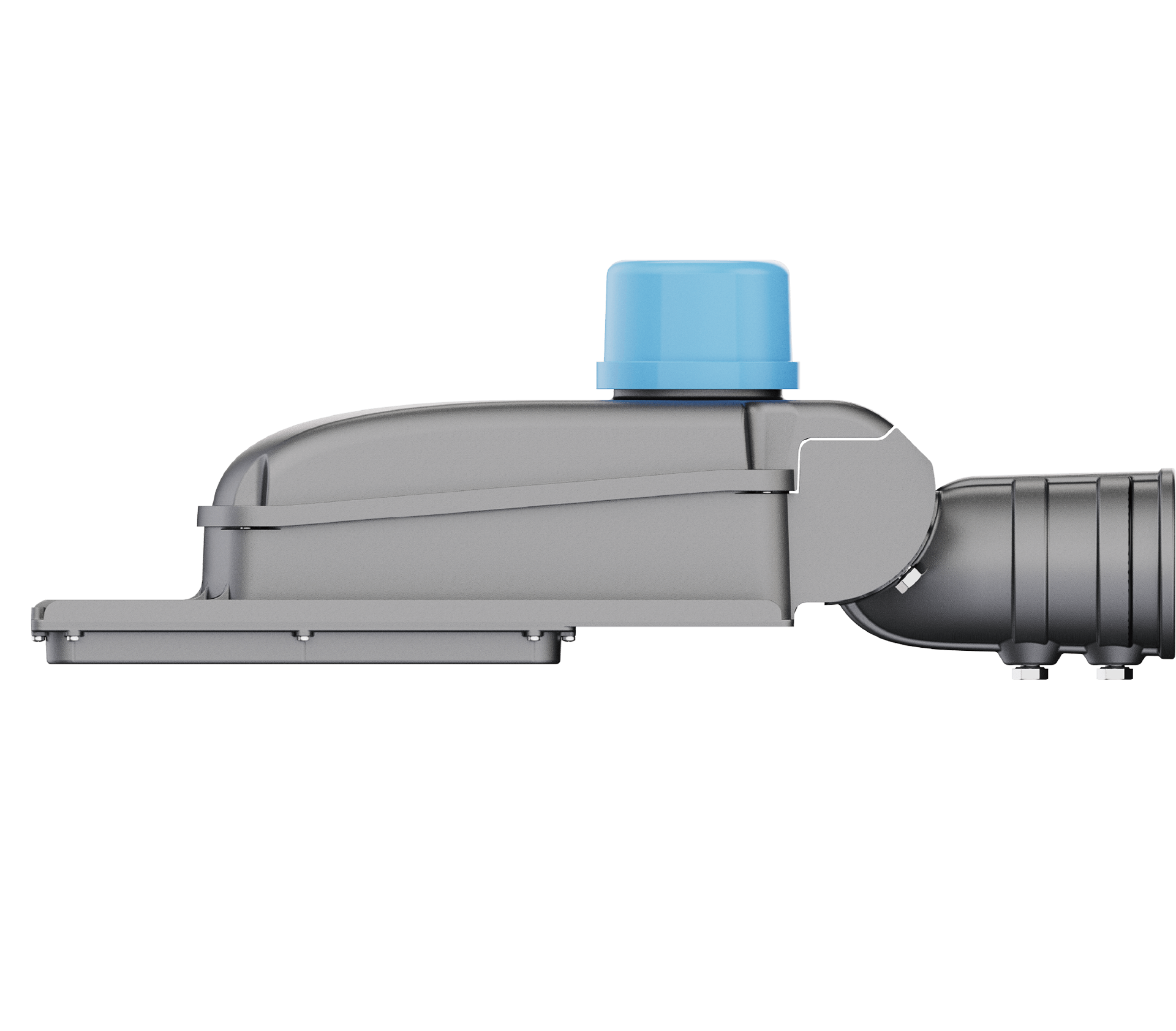

Horizontal entry

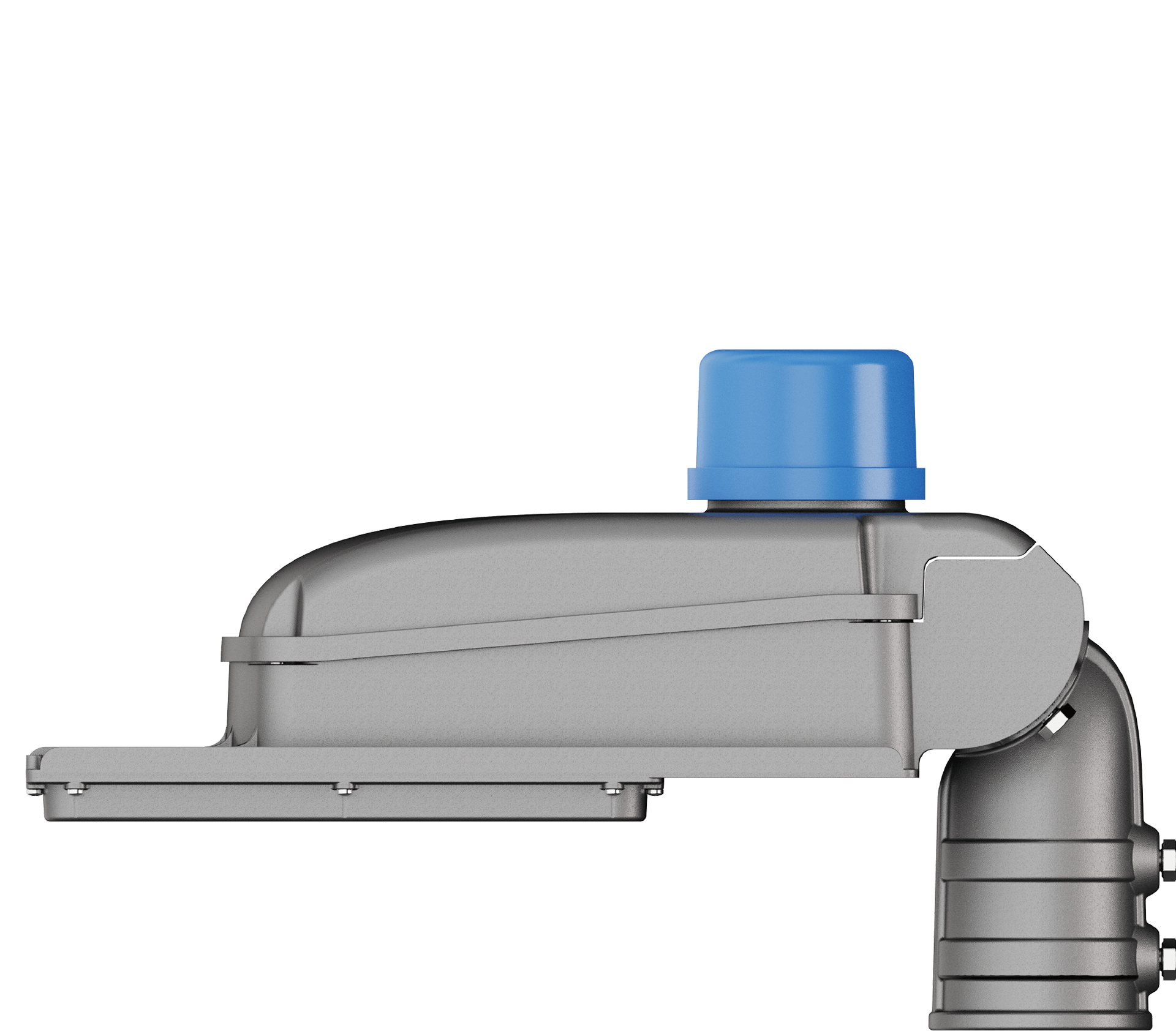

Vertical entry

TECHNICAL FEATURES

Professional lighting solutions for various outdoor applicaitons with 70% energy saving, short ROI period;

Up to 100, 000hrs @ L70, low maintenance cost;

Simple designs with high quality die casting could minimize the wind resistance to improve its reliability and enhances thermal management performance to achieve a longer life span;

NEMA and ZHAGA based control systems, ready for smart city solutions and compatatible with solar system to provide green and sustainable lighting;

Worldclass,approbated quality components(LEDs/Driver/etc.);

Support horizontal and vertical mounted,suitable for different light poles and applications;

5 years warranty.

TECHNICAL DATA

Model No. DDP171A (Without Glass) DDP171B (With Glass)
Typical Power 20/30/40w 50/60/75/80w 20/30/40w 50/60/75/80w
Typical Efficacy(Lm/W) 165±5 160±5 156±5 152±5
Input Voltage AC 100/120-240V/277V 50/60Hz
LED Driver INVENTRONICS/MOSO/PHILIPS(available on request)
Power Factor ≥0.95
THD <10%
Surge Protection 10KV
LED Components SMD 5050
CCT 3000K,4000K,5000K,5700K
CRI Ra>70
Standard Deviation
of Color Matching
<5 SDCM
Optics Type l , Type ll , Type lll
IP IP65
IK IK09
Installation Size φ60±5mm
Working Environment -30℃~+50℃
RH 10%~90%
LED Lifespan 100,000 Hours
