ALL SERIES
SGL268

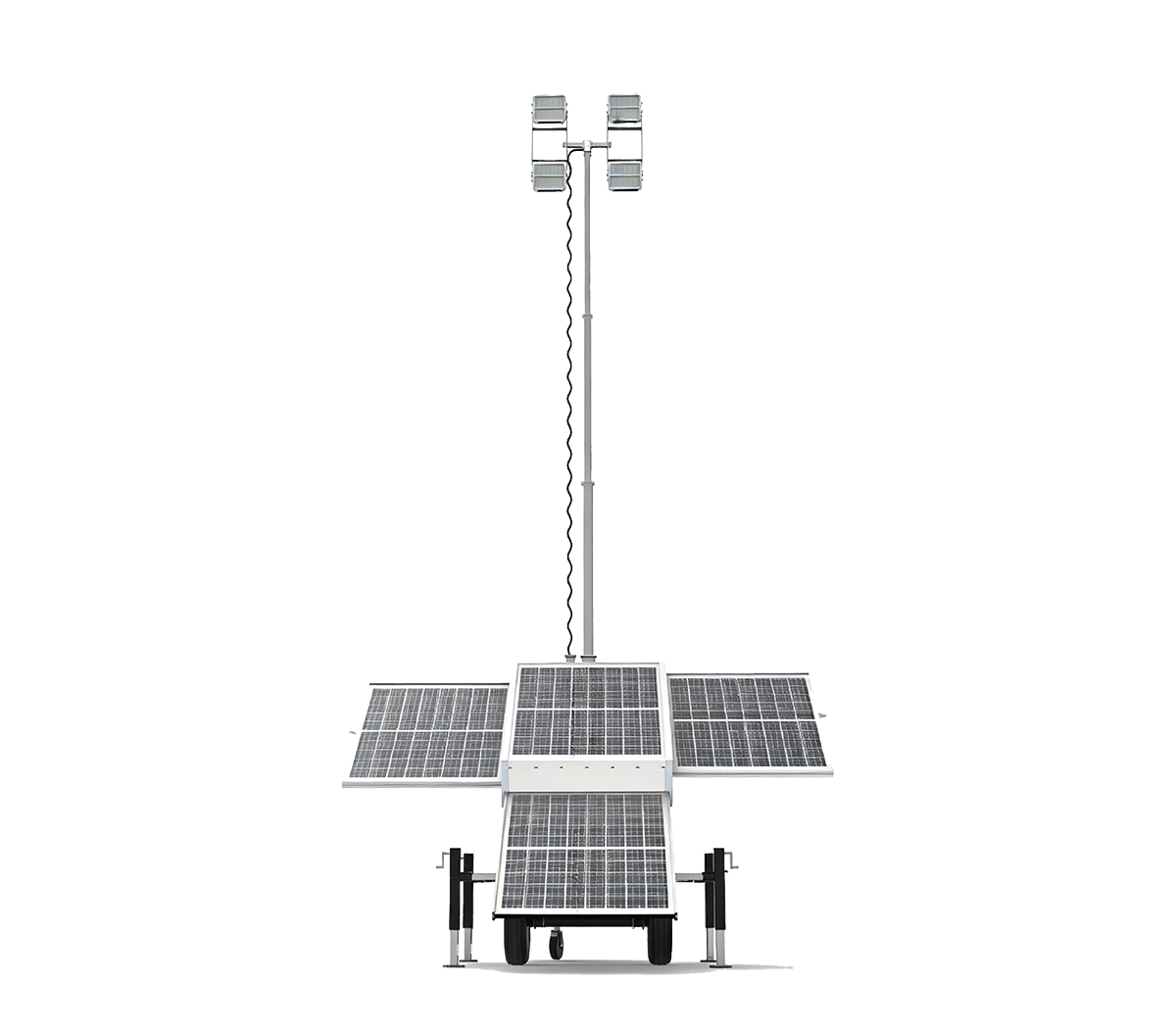

Front view

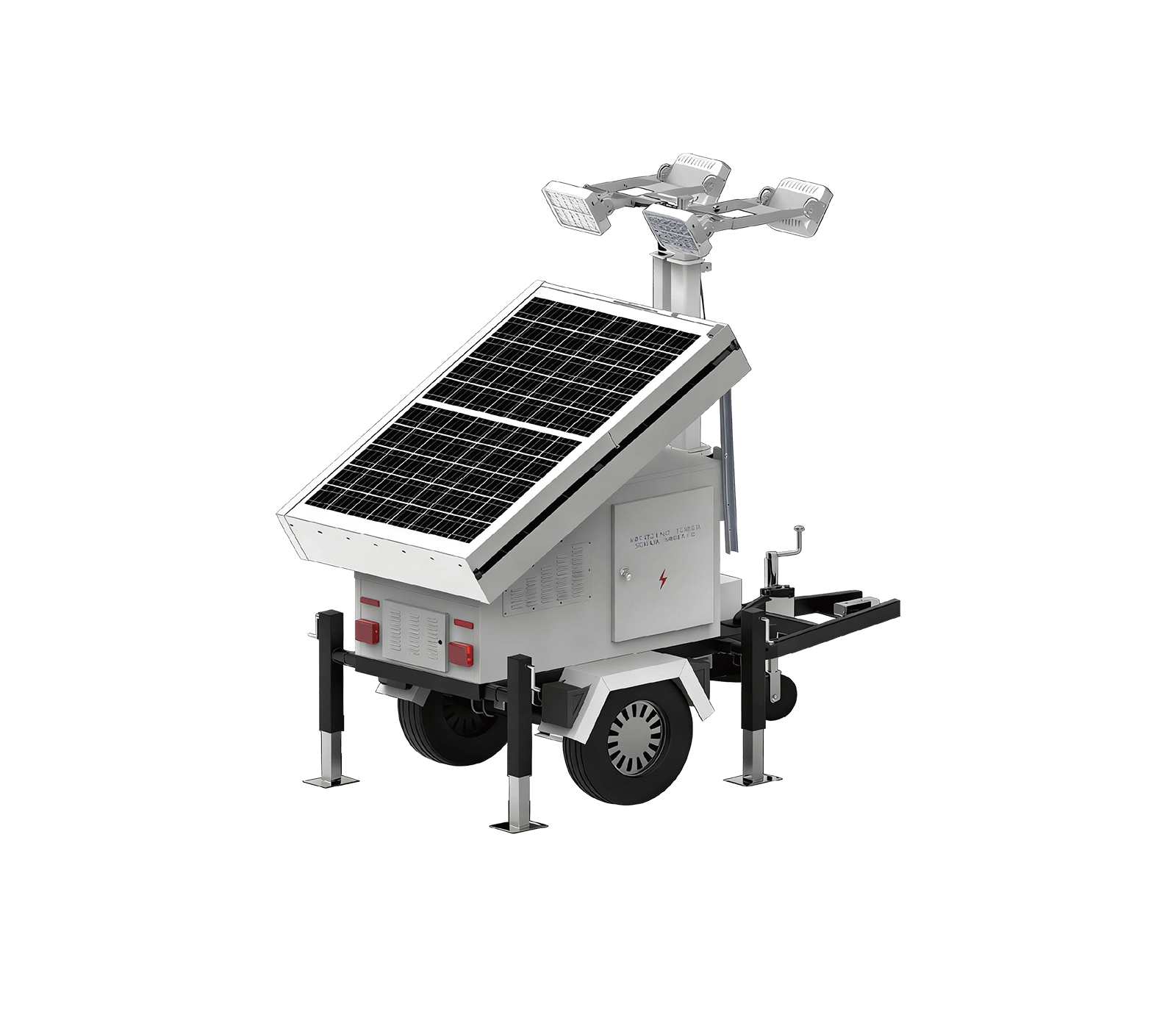

Side view
Monocrystalline silicon photo-voltaic power generation technology;
4(6)x100W high lighting effciency LED light sources and 4(6)x200Ah no memory gel battery pack;
The battery provides 18 hours of 100% power lighting;
IP65 protection level and Level 8 wind resistance rating.
| Model No. | SGL268M | SGL268L |
|---|---|---|
| Lighting Source | LED Flood Light | |
| Typical Power | 4*100w | 4*150w |
| Luminous Fux(Lm) | 72000 | 108000 |
| CCT | 3000K-6500K | |
| Battery Type | Gel | |
| Battery Model | 4*12V/200Ah | 6*12V/200Ah |
| Solar Panel | 3*445W | 3*645W |
| Controller Type | MPPT | |
| Controller Model | Light Control/Time Control/4G Remote Control/Manual Control | |
| Lifting Rod Height | 5-7m | |
| Wind Resistance Level | 8 Grade | |
| Charging Time | 6h | |
| Run Time | 18h | |
| Working Environment | -30℃~+50℃ | |
| Options | Charger, Inverter, Fan, Generator, Lithium Batter | |
