DDPro170

DDPro170

DDP170S

DDP170M

DDP170L

Horizontal entry

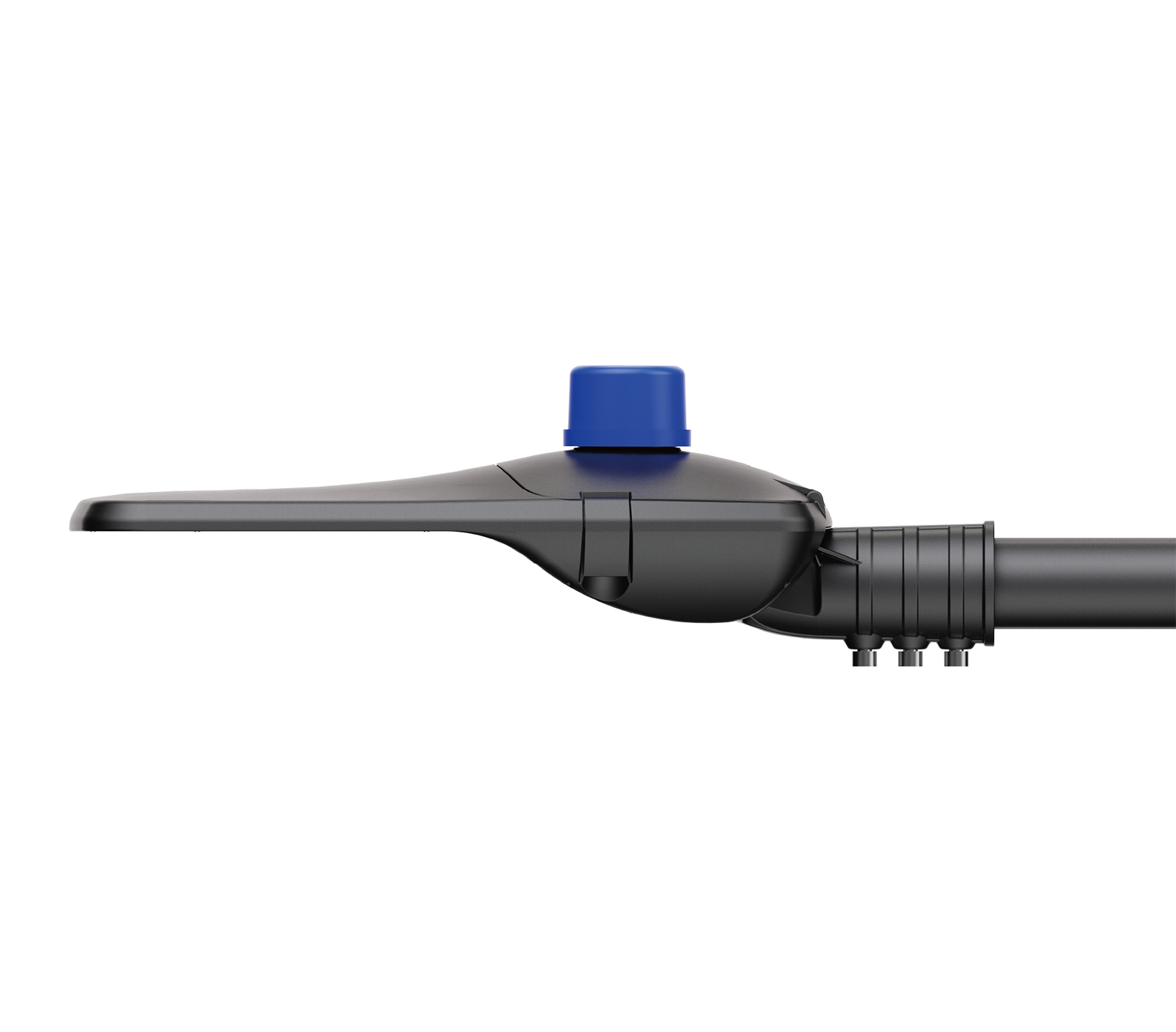

Vertical entry

TECHNICAL FEATURES

Professional lighting solutions for various outdoor applicaitons with 70% energy saving, short ROI period;

Up to 100, 000hrs @ L70, low maintenance cost;

Simple designs with high quality die casting could minimize the wind resistance to improve its reliability and enhances thermal management performance to achieve a longer life span;

NEMA and ZHAGA based control systems, ready for smart city solutions and compatatible with solar system to provide green and sustainable lighting;

Worldclass,approbated quality components(LEDs/Driver/etc.);

Support horizontal and vertical mounted,suitable for different light poles and applications;

Standard warranty: 5 years ( It could be prolonged up to 10 years according to projects requirements).

TECHNICAL DATA

Model No.DDP170SDDP170MDDP170L
Typical Power30/40/60w70/80/100w120/160w
Typical Efficacy(Lm/W)160155150
Input VoltageAC 100/120-240V/277V 50/60Hz
LED DriverINVENTRONICS/MOSO/PHILIPS(available on request)
Power Factor≥0.95
THD<10%
Surge Protection10KV(Default)/15KV(available on request)
LED ComponentsSMD 5050
CCT3000K,4000K,5000K,5700K
CRIRa>70(Default)/Ra>80
Standard Deviation of Color Matching<5 SDCM
OpticsType l , Type ll , Type lll
IPIP65
IKIK09
Installation Sizeφ60±5mm
Working Environment-30℃~+50℃
RH10%~90%
LED Lifespan100,000 Hours
