ALL SERIES
SGL172
SGL172

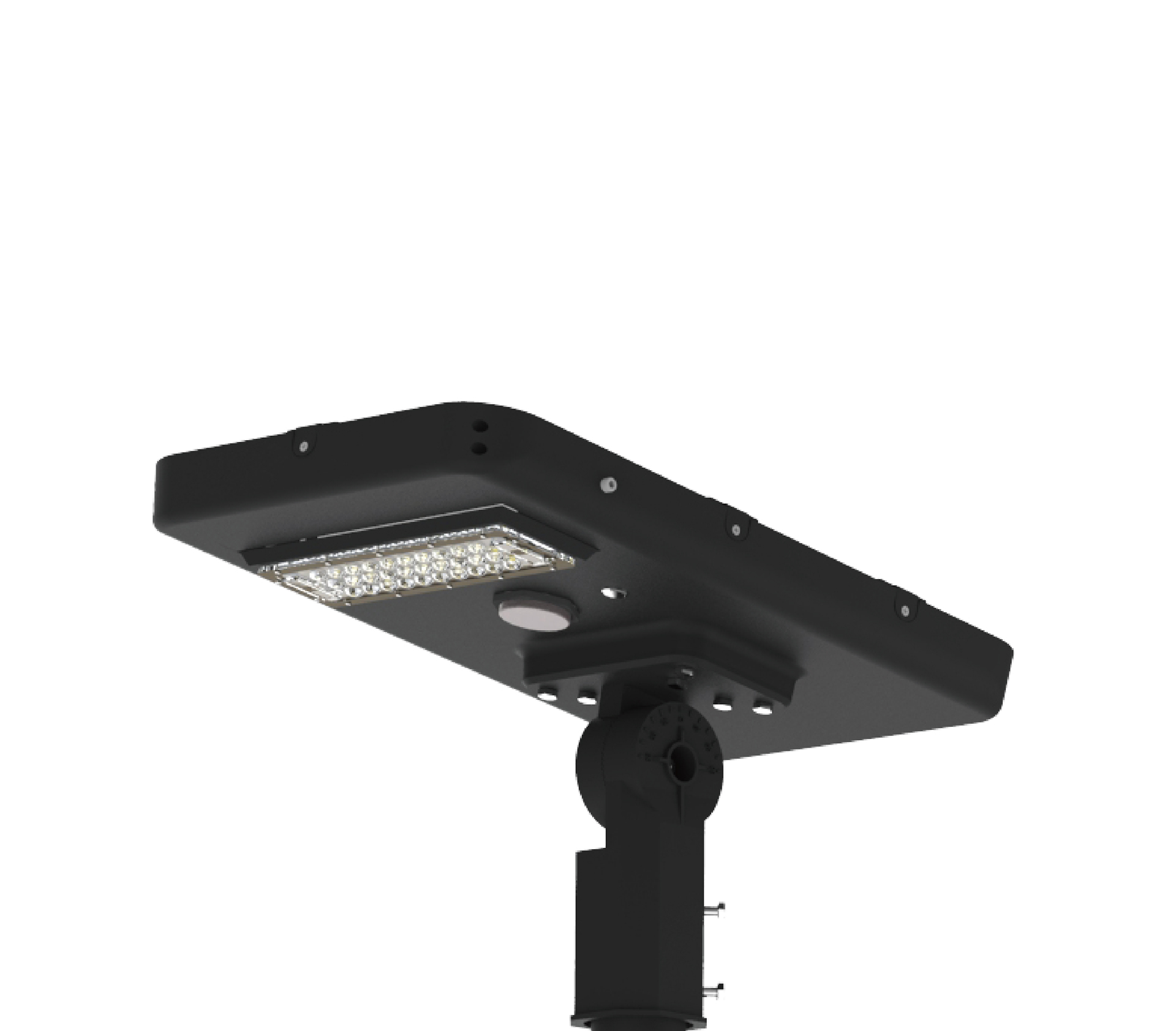

SGL172S

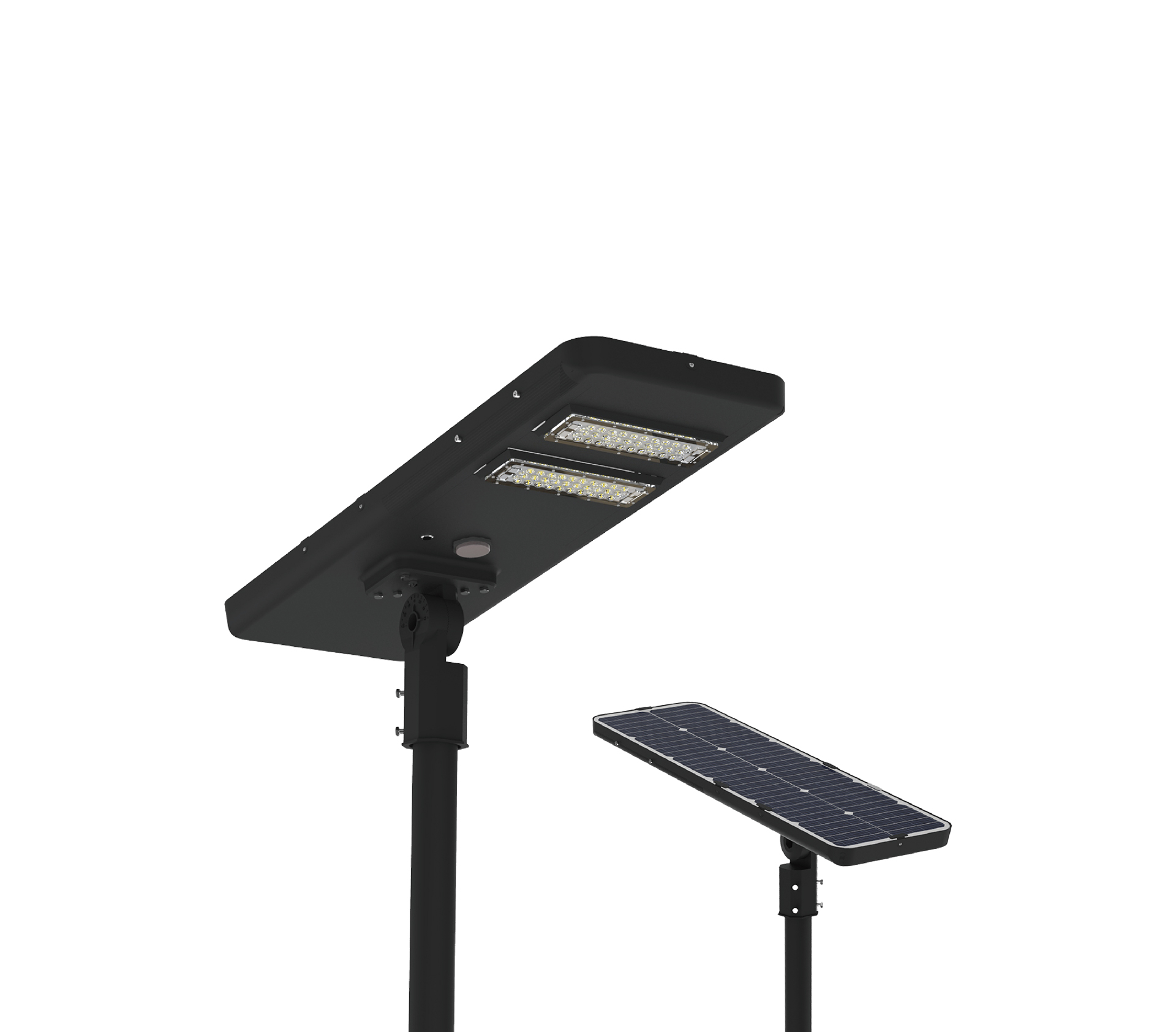

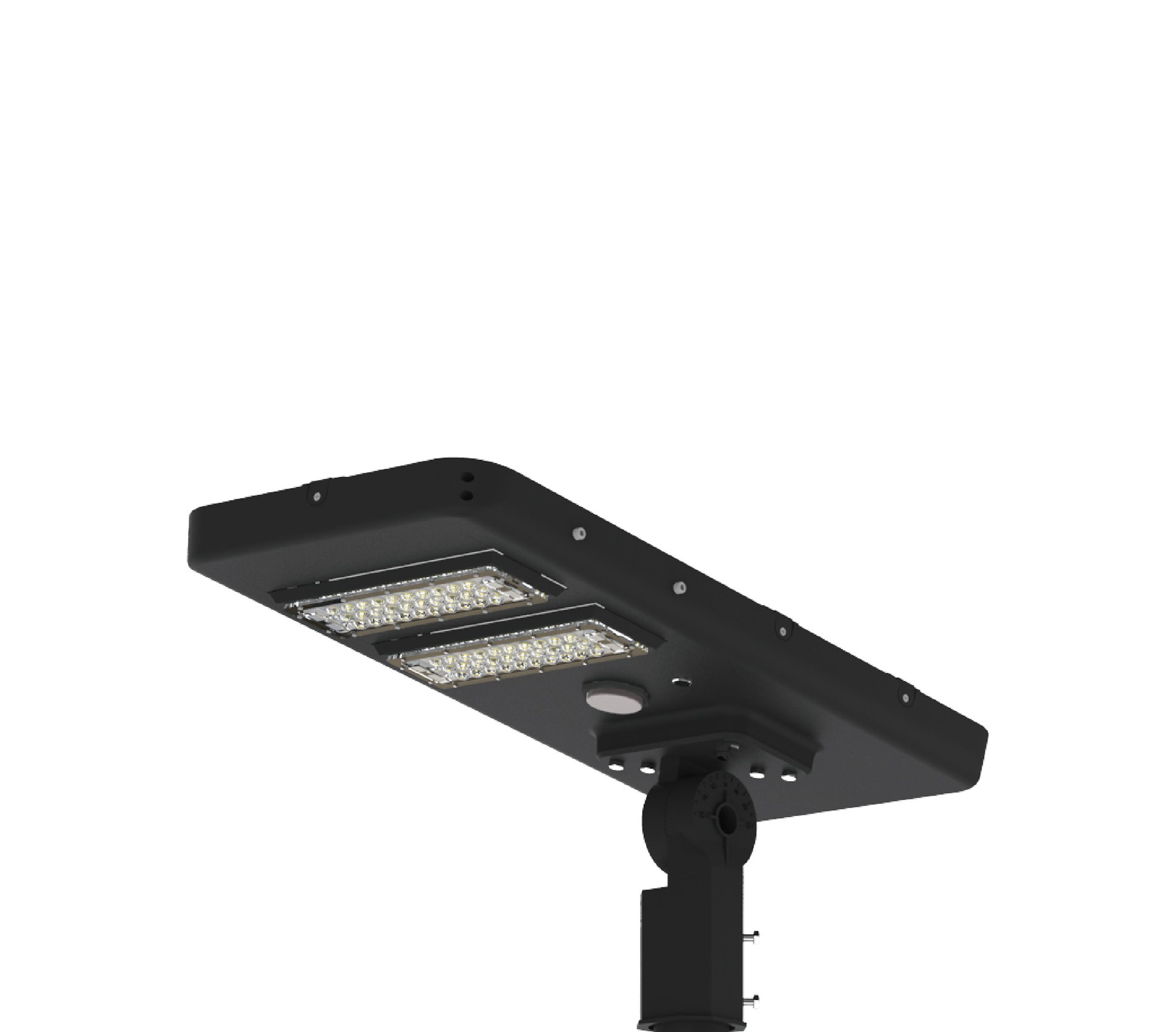

SGL172M

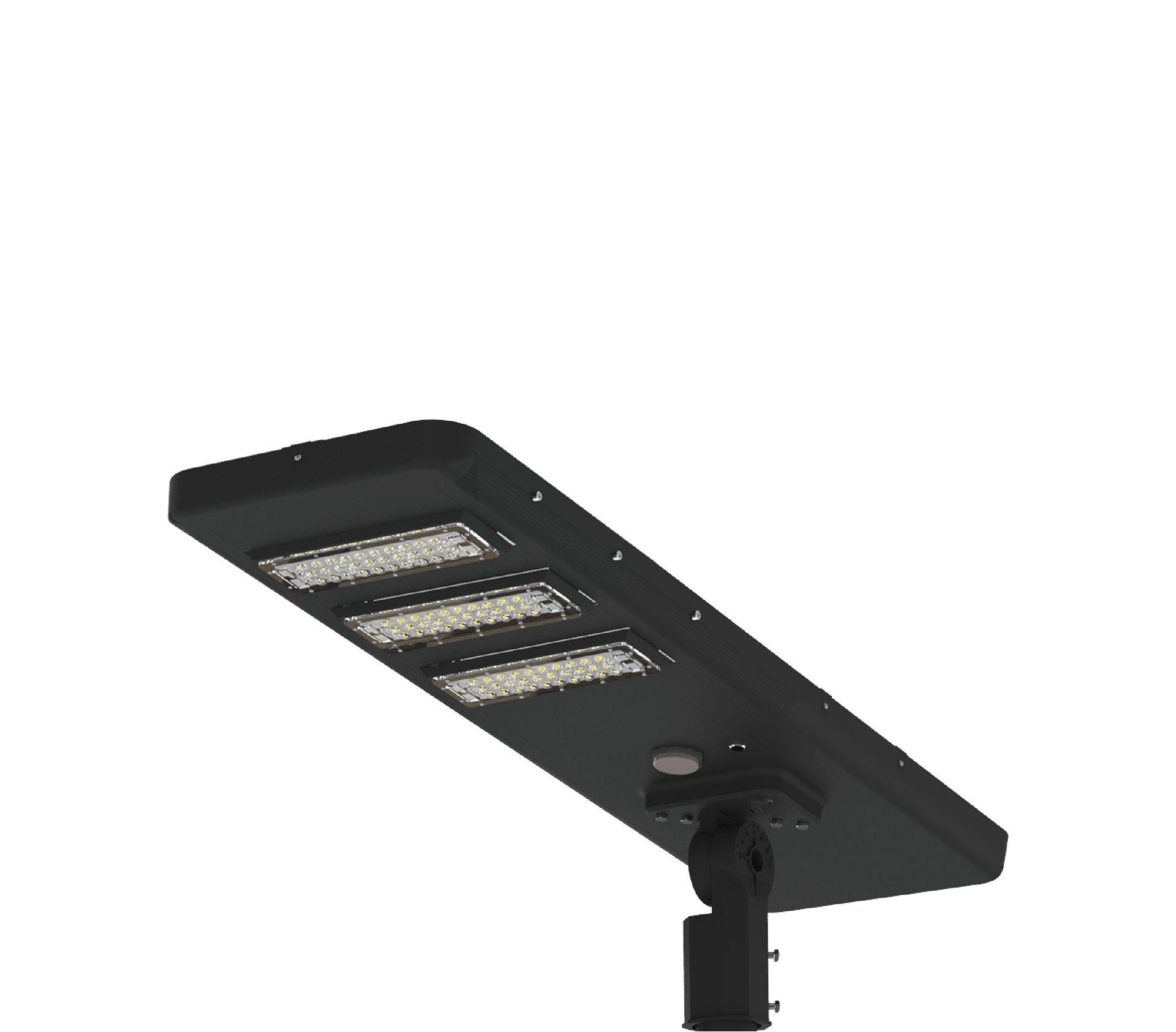

SGL172L

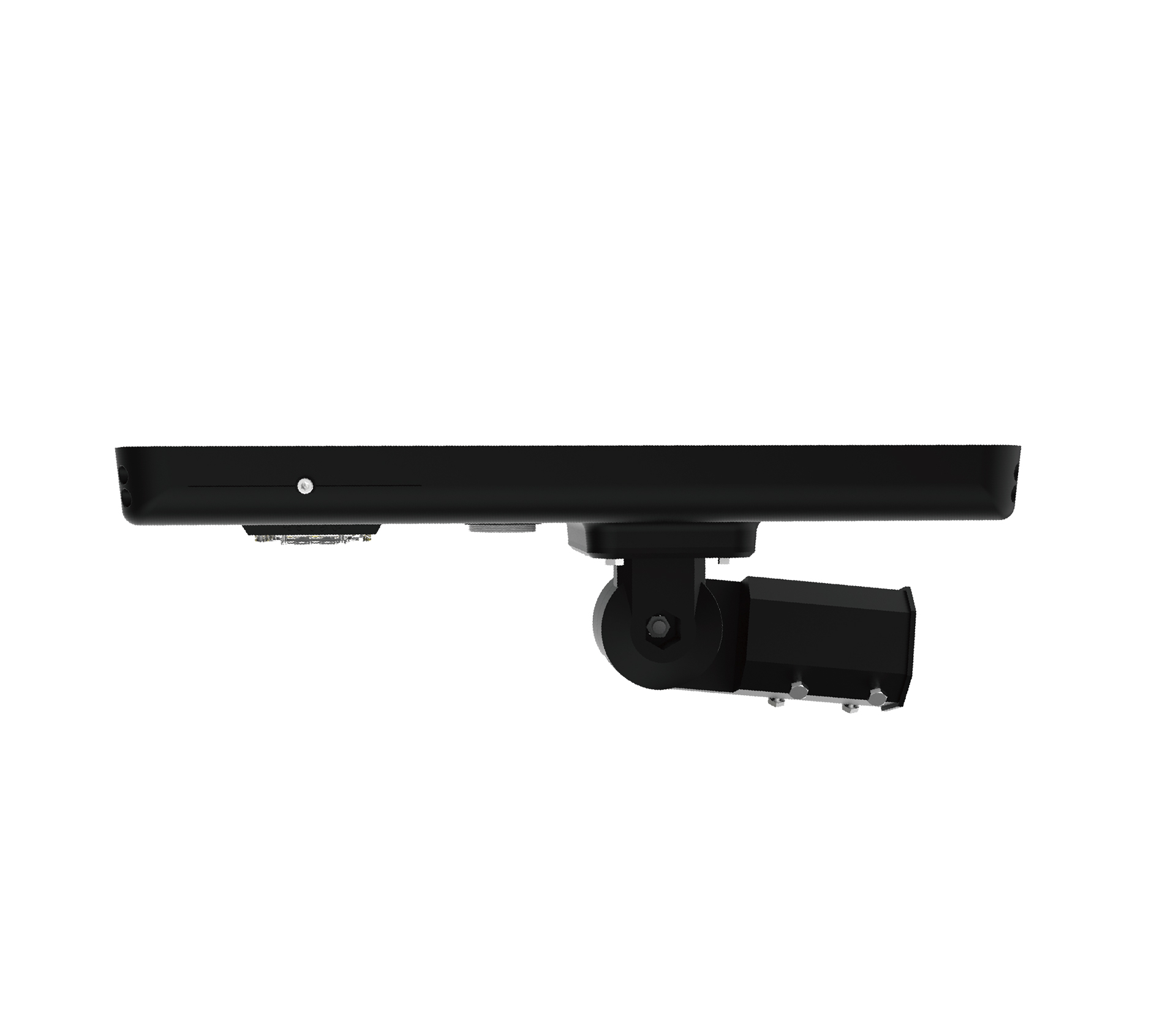

Horizontal entry

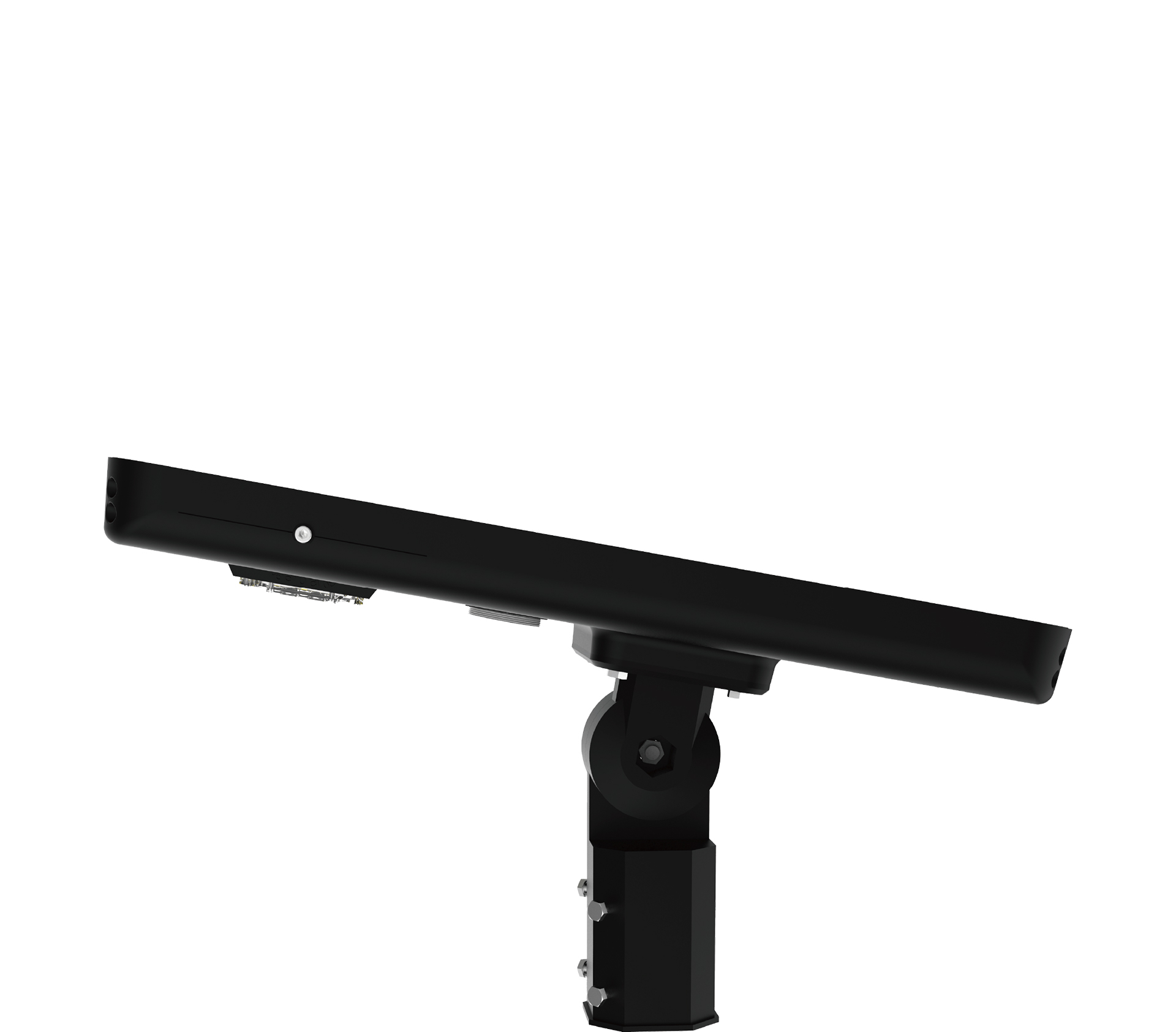

Vertical entry
Strong and durable die-casting aluminum lamp structure;
High efficiency Mono-crystalline Silicon solar panel;
Built in 32700 & 26650 Li-FEP04 (Lithium-lron Phosphate) battery;
High efficacy 190-200 Lm/w with high quality LED chips;
Suitable for 60±5mm & 80±5mm diameter poles;
Cycle charge more than 4000 times, ensure long service life;
Microwave sensor, Dusk to dawn+ Time control,Bluetooth and WlFl, various smart accessories and modes can be optional;
Ambient temperature -20℃ to +50℃, IP65 and IK08 protection level.
| Model No. | SGL172S | SGL172M | SGL172M | SGL172M | SGL172L |
|---|---|---|---|---|---|
| Typical Power | 20/30w | 40w | 50w | 60w | 90w |
| Battery Voltage | DC 12.8V | DC 25.6V | |||
| Operation Mode | 0.5H: 50% power / 3H: 100% power / 2.5H: 40~50% power / 6H: 25~30% power / 1H: 30~50% power | ||||
| Lumen(Lm) | 1 module | 2 module | 3 module | ||
| 3800/5700 | 7600 | 9500 | 11400 | 17100 | |
| Luminous Efficacy(Lm/W) | 190 | 190 | 190 | 190 | 190 |
| Chips Model And Qty | SMD 5050*30 Pcs | SMD 5050*60 Pcs | SMD 5050*90 Pcs | ||
| Solar Panel Watt | 32/37W | 49W | 61W | 73W | 165W |
| Battery Capacity(Basic) | 6/12AH | 18AH | 24AH | 36AH | 36AH |
| Battery Capacity(Premium) | 12/18AH | 24AH | 30AH | 36AH | 36AH |
| Installation Height | 4-5/5-6m | 6-7m | 7-8m | 9-10m | 10-12m |
| CCT | 3000K,4000K,5000K,5700K | ||||
| IP | IP65 | ||||
| IK | IK08 | ||||
| Installation Size | φ60/φ80±5mm | ||||
| Working Environment | -20℃~+50℃ | ||||
| RH | 10%~90% | ||||
| LED Lifespan | 50,000 Hours | ||||
