DDPZW003C
DDPZW003C

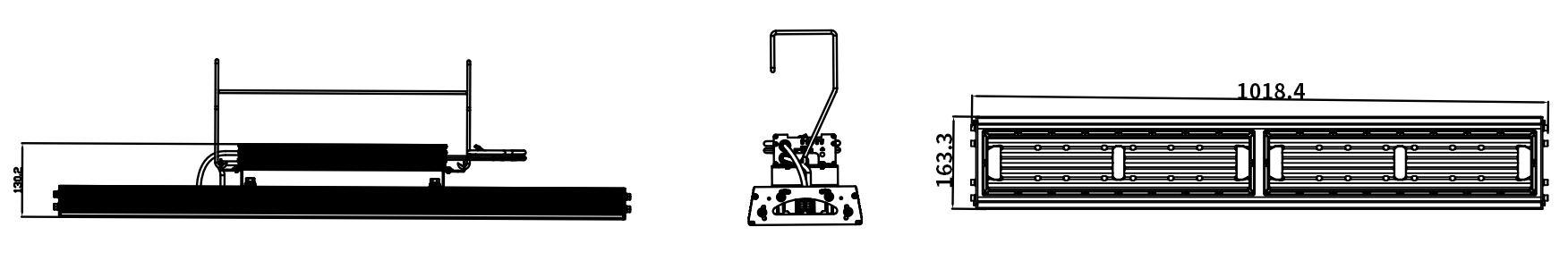

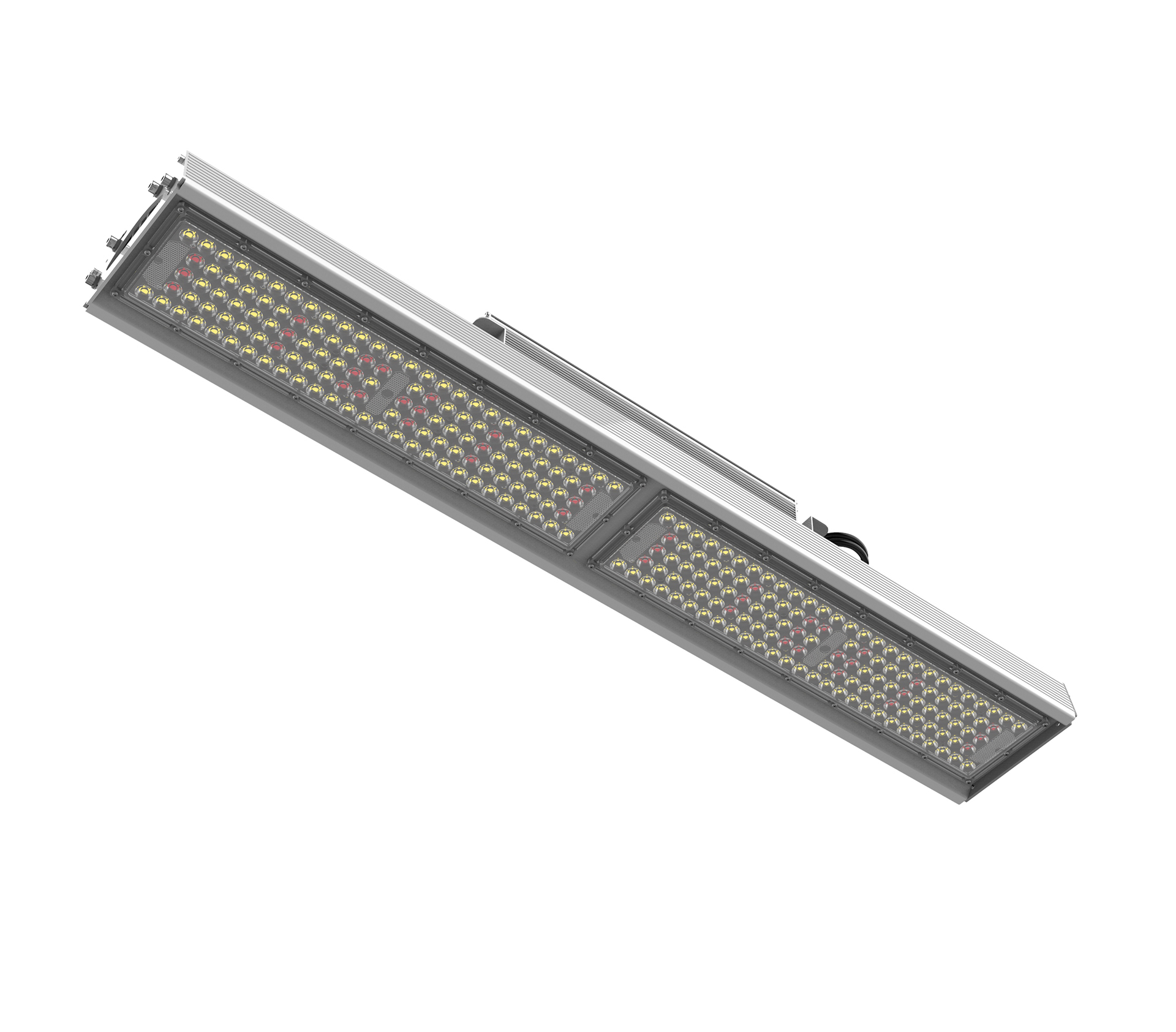

Front view
Side View
Back view
Red Light

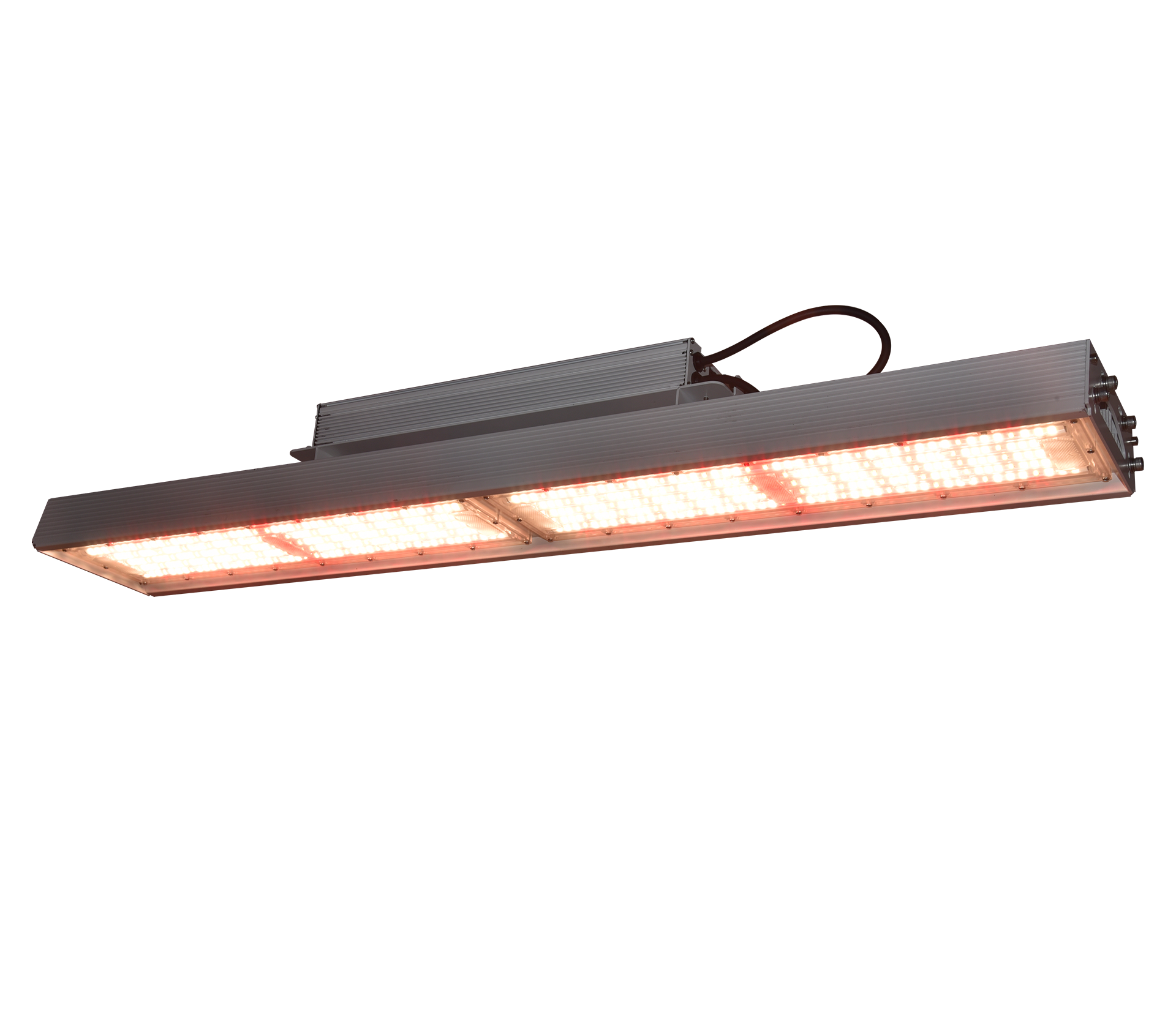

Full Spectrum
Use in supplement light for plant growth, suitable for tomato, cucumber, pepper, cannabis,rose and other plant, application in indoor supplement light,the place with short outdoor lighting time and insuffi cient light
All adopt superior stainless steel nuts.
Die-casting shell brings perfect heat dissipation.
Adopt the intergrated lens to improve the luminous efficiency and offer precise lighting distributions.
Aluminum PCB board with high thermal conductivity as chip carrier for faster cooling.
With full spectrum High efficiency 5050 LED chips.
480W replace 600W HPS light, 660W replace 1000W HPS light.
Low heat dissipation to avoid damage to plants, installation is closer to plants, which improves the utilization rate of light.

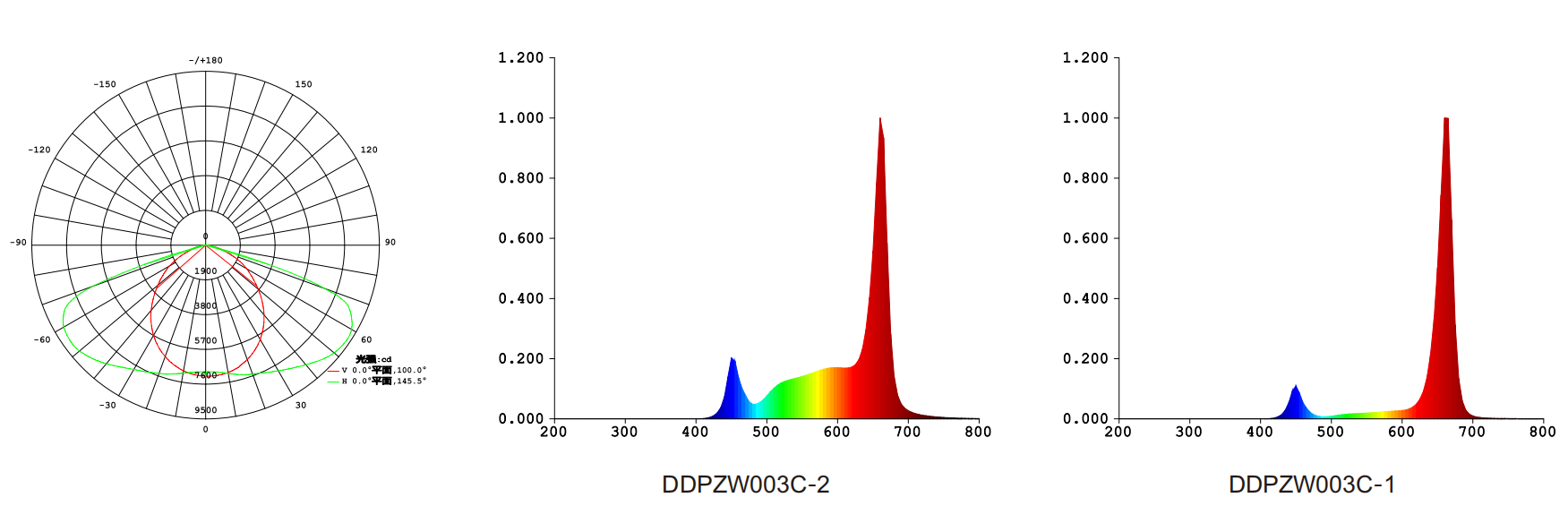

Beam angle: Full spectrum 97*145°, Red light 100*145°.

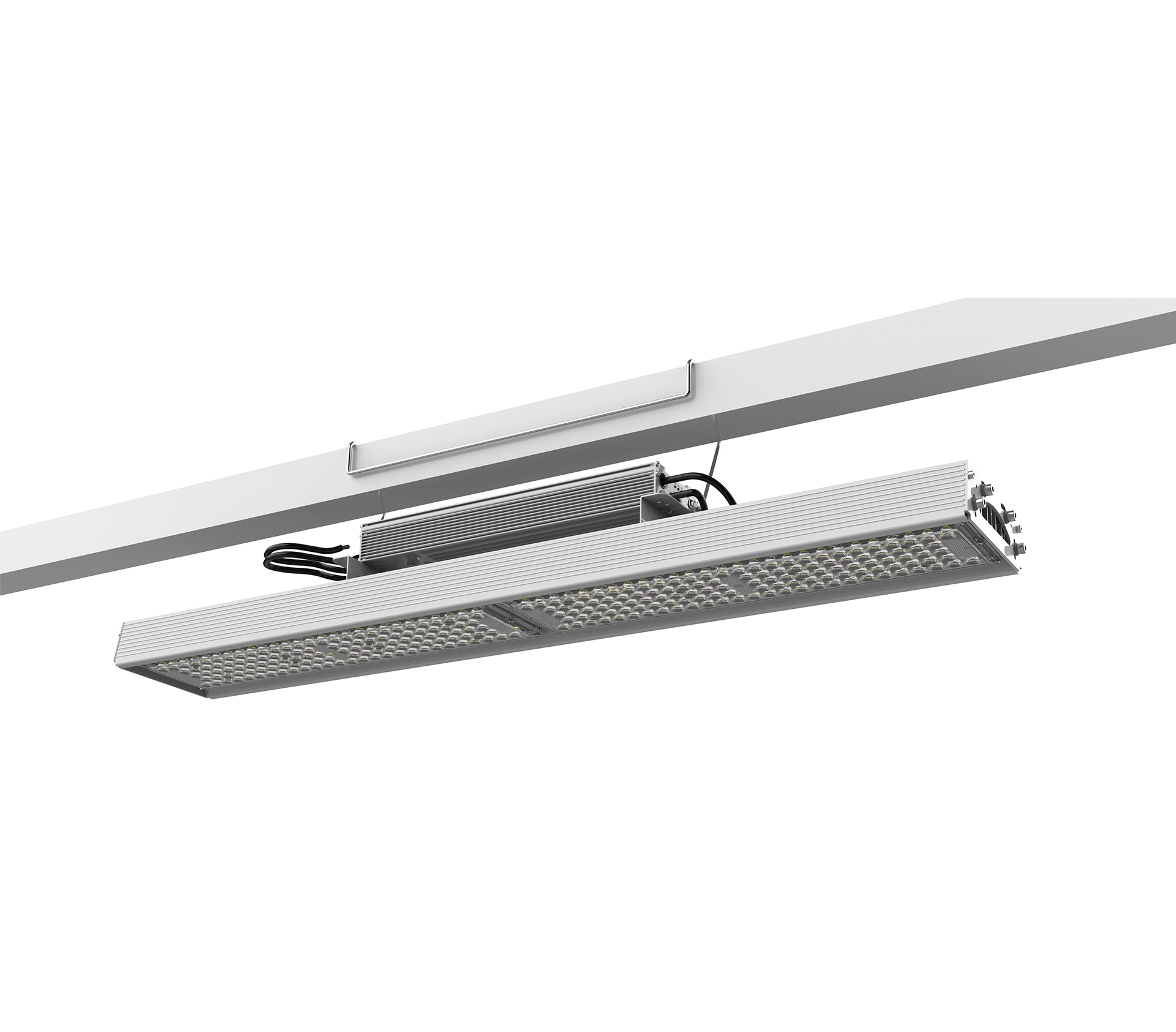

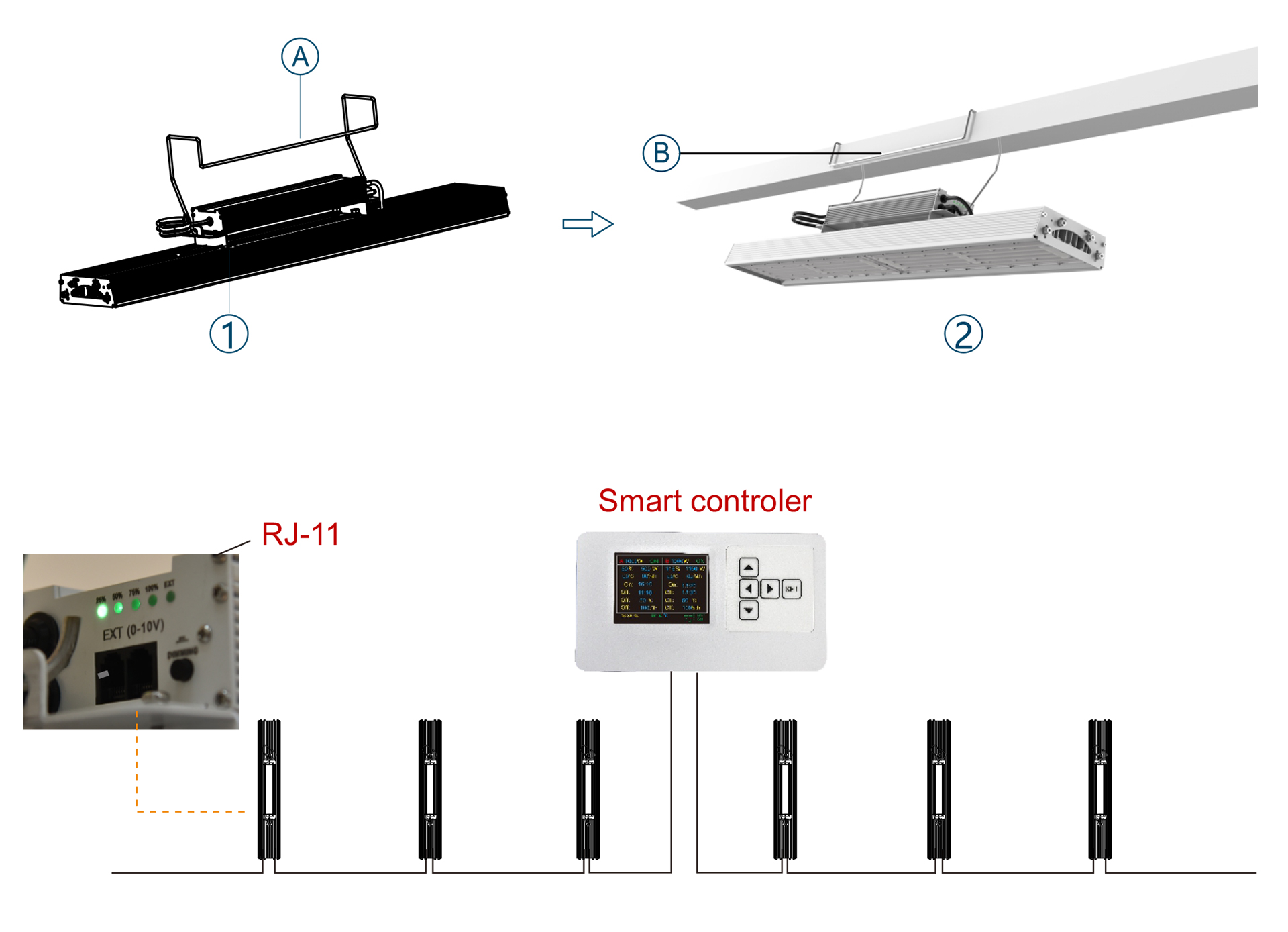

Using stainless steel bracket, easy installation.
| Description |
DDPZW480W003C-1L DDPZW480W003C-1H |
DDPZW520W003C-1L DDPZW520W003C-1H |
DDPZW630W003C-1L DDPZW630W003C-1H |
DDPZW660W003C-1L DDPZW660W003C-1H |
| Input voltage [Vac] | 100-277/277-480Vac | 100-277/277-480Vac | 100-277/277-480Vac | 100-277/277-480Vac |
| Input current [A] | 2.0@240V | 2.17@240V | 2.63@240V | 2.8@240V |
| Input wattage [W] | 480±5% | 520±5% | 630±5% | 660±5% |
| Input frequency [Hz] | 50/60 | 50/60 | 50/60 | 50/60 |
| Power factor | ≥095@240V | ≥0.96@240V | ≥0.96@240V | ≥0.96@240V |
| Output voltage [v] | 51 | 51 | 51 | 51 |
| Output current [A] | 8.76 | 9.5 | 11.5 | 12 |
| Wattage(reference) [W] | 446±5% | 484±5% | 586±5% | 614±5% |
| Luminous flux [Lm] | 26500 | 27500 | 32500 | 37800 |
| Colour temperature [K] | 1250 | 1250 | 1250 | 1250 |
| Colour rendering index [Ra] | 30 | 30 | 30 | 30 |
| Flux of emitted photons [umol/s] | 1580 | 1640 | 1980 | 2310 |
| PPFD [PAR] | 510 (H1.8m) | 550 (H1.8m) | 670 (H1.8m) | 700 (H1.8m) |
| Beam Angle [L,V] | 100X145° | 100X145° | 100X145° | 100X145° |
| LED chip | 5050, 3535 | 5050, 3535 | 5050, 3535 | 5050, 3535 |
| Average life [h] | 50000 | 50000 | 50000 | 50000 |
| Color precent | R56% G40% B4% | R56% G40% B4% | R56% G40% B4% | R56% G40% B4% |
| Net weight [kg] | 9.25kg | 9.25kg | 9.3kg | 9.3kg |
| Gross weight [kg] | 10.75kg | 10.75kg | 10.8kg | 10.8kg |
| Dimensions | 101.84＊16.33＊13.02cm | 101.84＊16.33＊13.02cm | 101.84＊16.33＊13.02cm | 101.84＊16.33＊13.02cm |
| IP | IP66 | IP66 | IP66 | IP66 |
| Storage Environment | -40℃ ~ +85℃ RH10%-95% | -40℃ ~ +85℃ RH10%-95% | -40℃ ~ +85℃ RH10%-95% | -40℃ ~ +85℃ RH10%-95% |
| Ambient tenperture [℃] | -25℃ ~ +50℃ | -25℃ ~ +50℃ | -25℃ ~ +50℃ | -25℃ ~ +50℃ |
| Description |
DDPZW480W003C-2L DDPZW480W003C-2H |
DDPZW520W003C-2L DDPZW520W003C-2H |
DDPZW630W003C-2L DDPZW630W003C-2H |
DDPZW660W003C-2L DDPZW660W003C-2H |
| Input voltage [Vac] | 100-277/277-480Vac | 100-277/277-480Vac | 100-277/277-480Vac | 100-277/277-480Vac |
| Input current [A] | 2.0@240V | 2.17@240V | 263@240V | 2.8@240V |
| Input wattage [w] | 480±5% | 520±5% | 630±5% | 660±5% |
| Input frequency [Hz] | 50/60 | 50/60 | 50/60 | 50/60 |
| Power factor | ≥095@240V | ≥0.96@240V | ≥0.96@240V | ≥0.96@240V |
| Output voltage [V] | 53.7 | 53.7 | 53.7 | 53.7 |
| Output current [A] | 8.32 | 9.02 | 10.9 | 11.4 |
| Wattage(reference) [w] | 446±5% | 484±5% | 586±5% | 614±5% |
| Luminous flux [Lm] | 61700 | 64000 | 78500 | 78640 |
| Colour temperature [k] | 2700 | 2700 | 2700 | 2700 |
| Colour rendering index [Ra] | 80 | 80 | 80 | 80 |
| Flux of emitted photons [umol/s] | 1490 | 1540 | 1850 | 1880 |
| PPFD [PAR] | 436 (H1.8m) | 470 (H1.8m) | 570 (H1.8m) | 600 (H1.8m) |
| Beam Angle [L,V] | 97X145° | 97X145° | 97X145° | 97X145° |
| LED chip | 5050, 3535 | 5050, 3535 | 5050, 3535 | 5050, 3535 |
| Average life [h] | 50000 | 50000 | 50000 | 50000 |
| Color precent | R29% G68% B3% | R29% G68% B3% | R29% G68% B3% | R29% G68% B3% |
| Net weight [kg] | 9.25kg | 9.25kg | 9.3 kg | 9.3 kg |
| Gross weight [kg] | 10.75kg | 10.75kg | 10.8kg | 10.8kg |
| Dimensions | 101.84＊16.33＊13.02cm | 101.84＊16.33＊13.02cm | 101.84＊16.33＊13.02cm | 101.84＊16.33＊13.02cm |
| IP | IP66 | IP66 | IP66 | IP66 |
| Storage Environment | -40℃ ~ +85℃ RH10%-95% | -40℃ ~ +85℃ RH10%-95% | -40℃ ~ +85℃ RH10%-95% | -40℃ ~ +85℃ RH10%-95% |
| Ambient tenperture[℃] | -25℃ ~ +50℃ | -25℃ ~ +50℃ | -25℃ ~ +50℃ | -25℃ ~ +50℃ |
*DDPZW003C-1L "1" stands for red light，"2" stands for full sepctrum，"L" for100-277V，"H" for 277-480V
