ALL SERIES
DDPro508

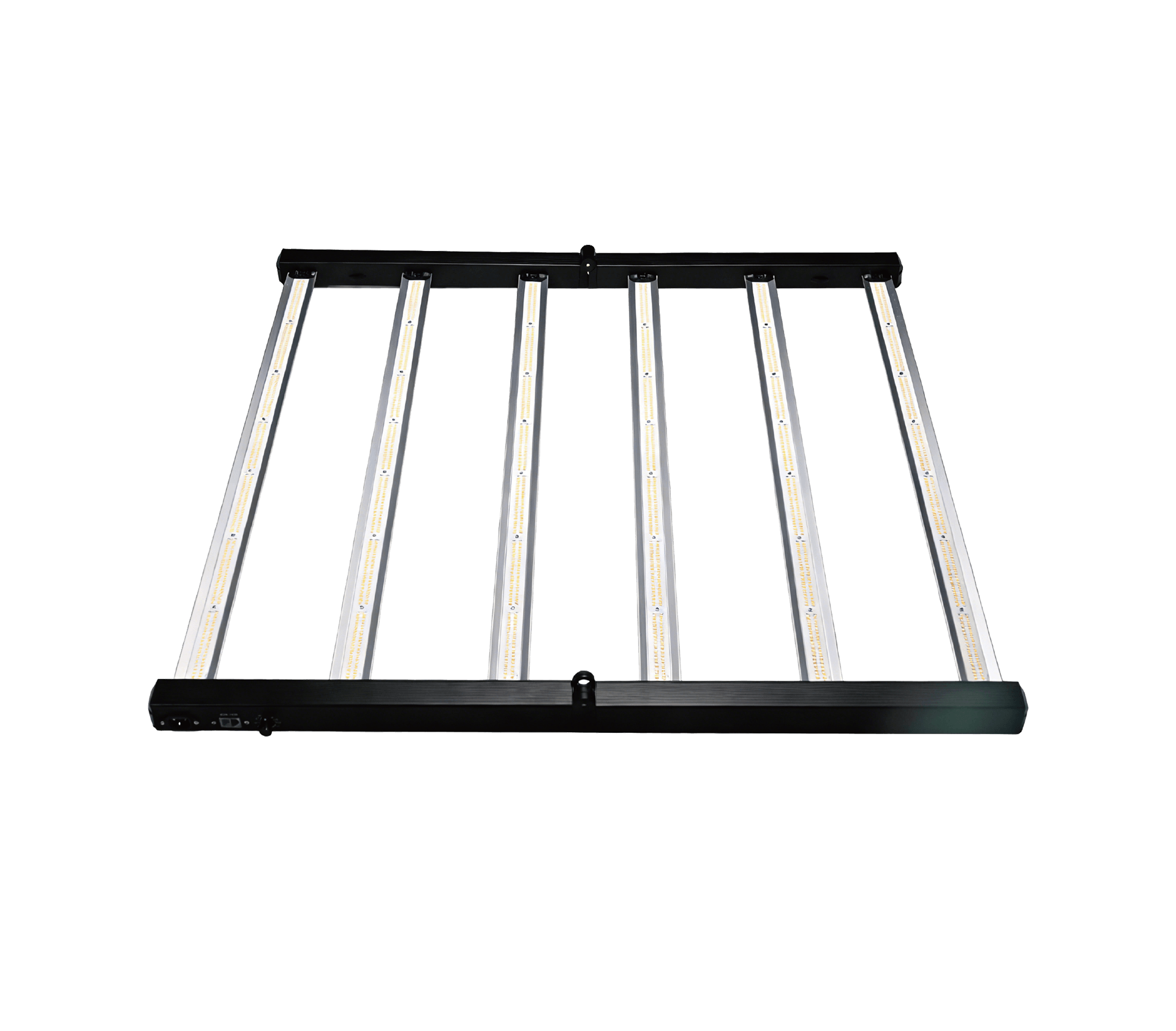

Front view

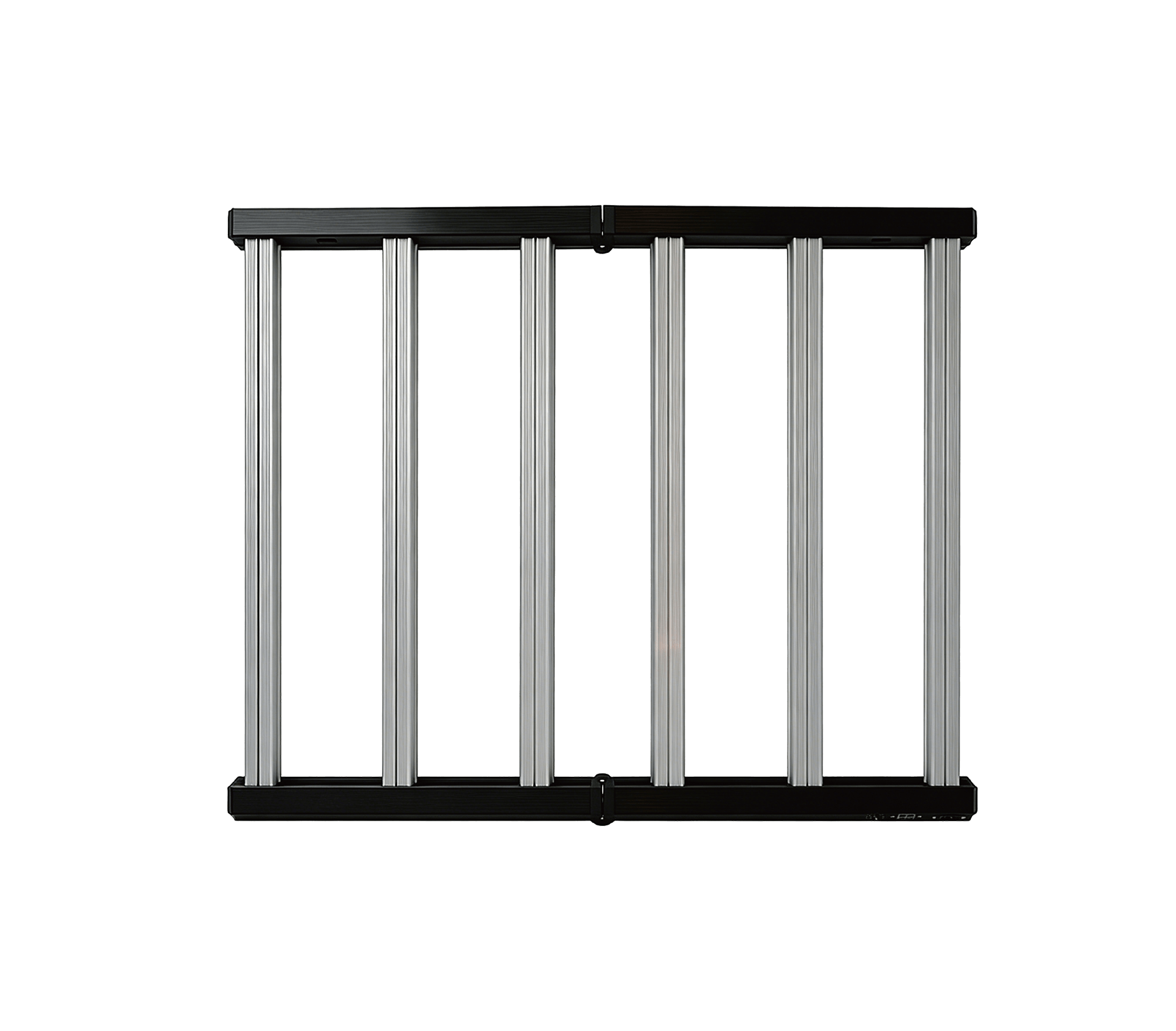

Back view
Supplementary light for plant growth, suitable for tomatoes, cucumbers, peppers, cannabis, hemp and other plants. Used for promoting plant growth and increasing crop yields.
Fasteners and mounting brackets are made of 304 stainless steel, offering both aesthetics and durability;
The housing is extruded from 6063 aluminum ingots, resulting in a lightweight, attractive fixture with excellent heat dissipation;
The folding hinges are made of die casting aluminum, concealing the connecting cables internally;
Utilizes different LED light sources, such as 2835 and 3535, to achieve various spectral configurations;
Rated power is 720W, with a beam angle of 120 degrees;
The mounting bracket can be suspended using slings or stainless steel hooks.
| Model No. | DDP508F | DDP508FR | DDP508UV |
|---|---|---|---|
| Input Voltage | AC 200-277V 50/60HZ | ||
| Typical Power | 692W±5% | ||
| Luminous Fux(Lm) | 132100 | 120000 | 120000 |
| Power Factor | ≥0.95 | ||

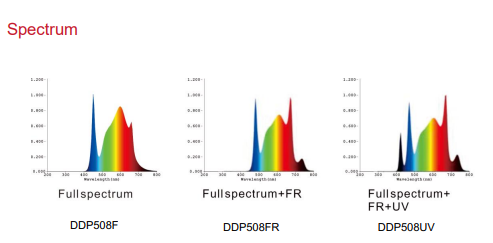

| CCT | Fullspectrum | Fullspectrum+FR | Fullspectrum+FR+UV |
| PPE | 2.7 | 2.7 | 2.9 |
| PPF | 1945 | 1945 | 2090 |
| PPFD | 800@H0.3m | 800@H0.3m | 800@H0.3m |
| Chips | 2835W+3030R | 2835W+3030R+3030FR | 2835W+3535R+3535FR+3535UV |
| Light-color Ratia | R40% G42% B17% FR1% | R40% G41% B16% FR3% | R50% G31% B15% FR4% |
| Beam Angle | 120° | ||
| IP | IP54 | ||
| Working Environment | 0℃~+40℃ | ||
| LED Lifespan | 50,000 Hours | ||
